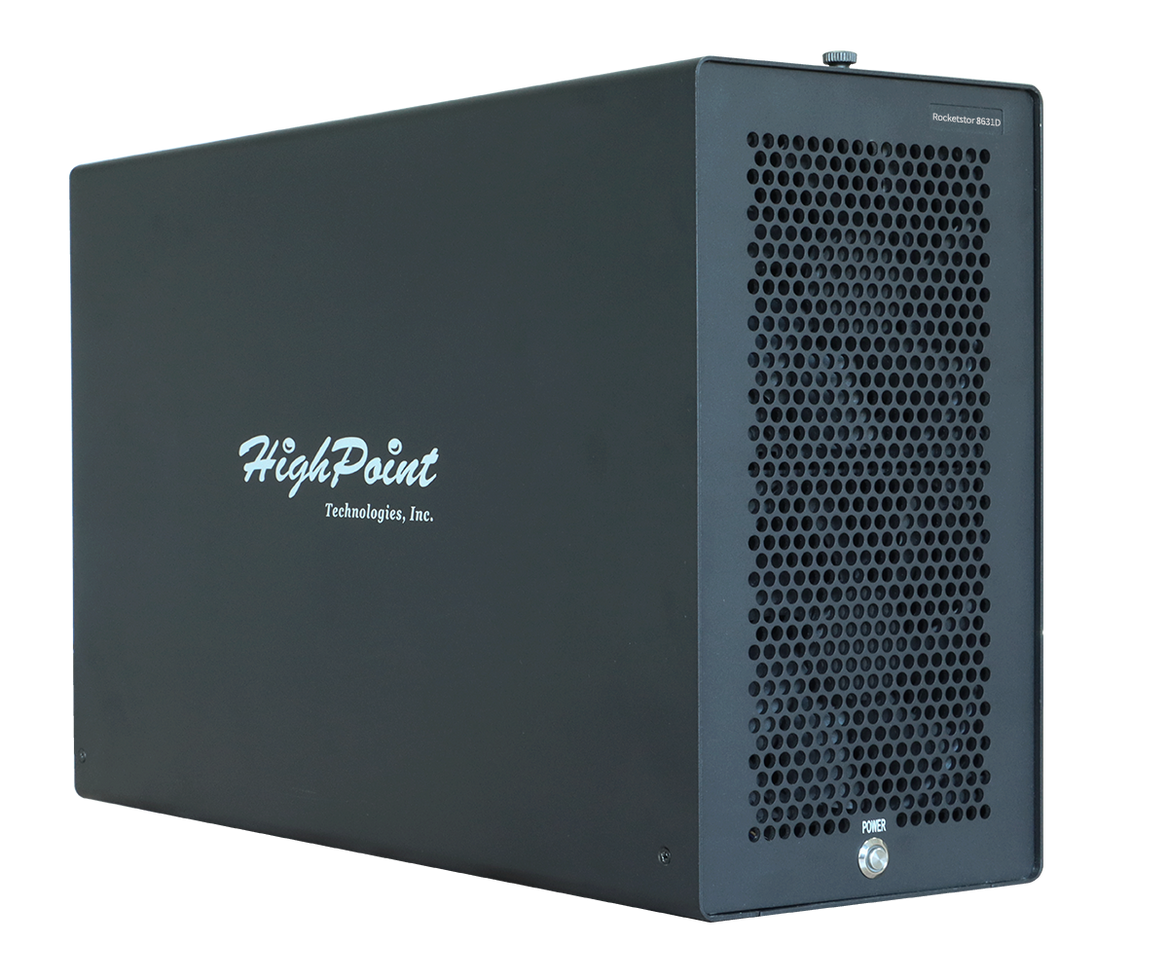

RocketStor 8631D

Datasheet

PCIe Gen5 x16 External CopprLink Expansion Enclosure

Key Features:

Astera Labs retimers combined with PCI-SIG CopprLink technology ensure stable, full-bandwidth PCIe Gen5 x16 connectivity

Universal GPU Compatibility: Supports industry standard full-height, 2-slot and 3-slot NVIDIA, AMD, Intel, etc. GPUs

Integrated 1300W PSU addresses the real-world power demands of high-end Accelerator cards, I/O devices and GPUs

Robust, Acoustically efficient, Intelligent Cooling system prevents performance throttling while maintaining a quiet workspace

Seamless, Plug-and-Play Software-less Installation for Linux & Windows Platforms

POC Request Form

Meeting Request Form

Product	RocketStor 8631D
Bus Interface	PCI-Express 5.0 x16
Hardware Architecture	Asteralabs PCIe 5.0 Retimer Technology
CooprLink Compliant	Yes (CDFP Pin Definition)
Number of Channel / Devices	1 x CDFP (Dedicated PCIe 5.0 x16 per port)
Port Type	CDFP (Gen5)
Data Transfer Rate	64GB/s
Power Measurement	Yes
Number of GPU Supported	1
GPU Support	Full-height, 2-slot and 3-slot GPUs
	Up to 370mm x 170mm (to Gold Finger) x 88mm & below
Power Measurement	Real Time Power Measurement
Audible Alarm	High Temperature, Low-Fan Speed Warnings
Smart Fan Control	Dynamically adjusts fan speed to address changing temperature conditions
	Manually Select from 5 Speed settings (Ultra-Low to Full)
Enclosure Dimensions	18.66" x 11.26" x 6.10"
Product Weight	13.4 lbs.

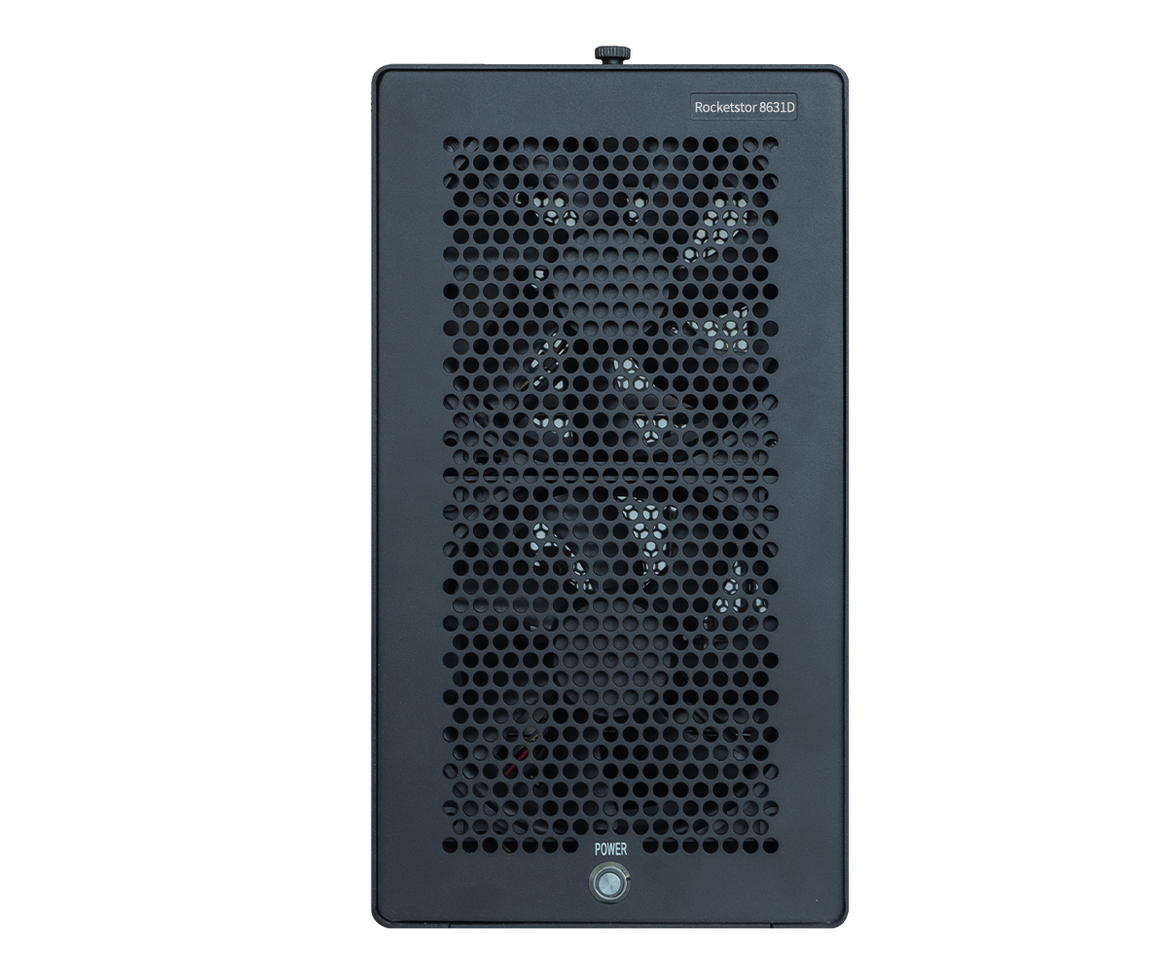

Front Panel LEDs
Power Switch	Powers On/Off the unit. Illuminates blue when powered On.

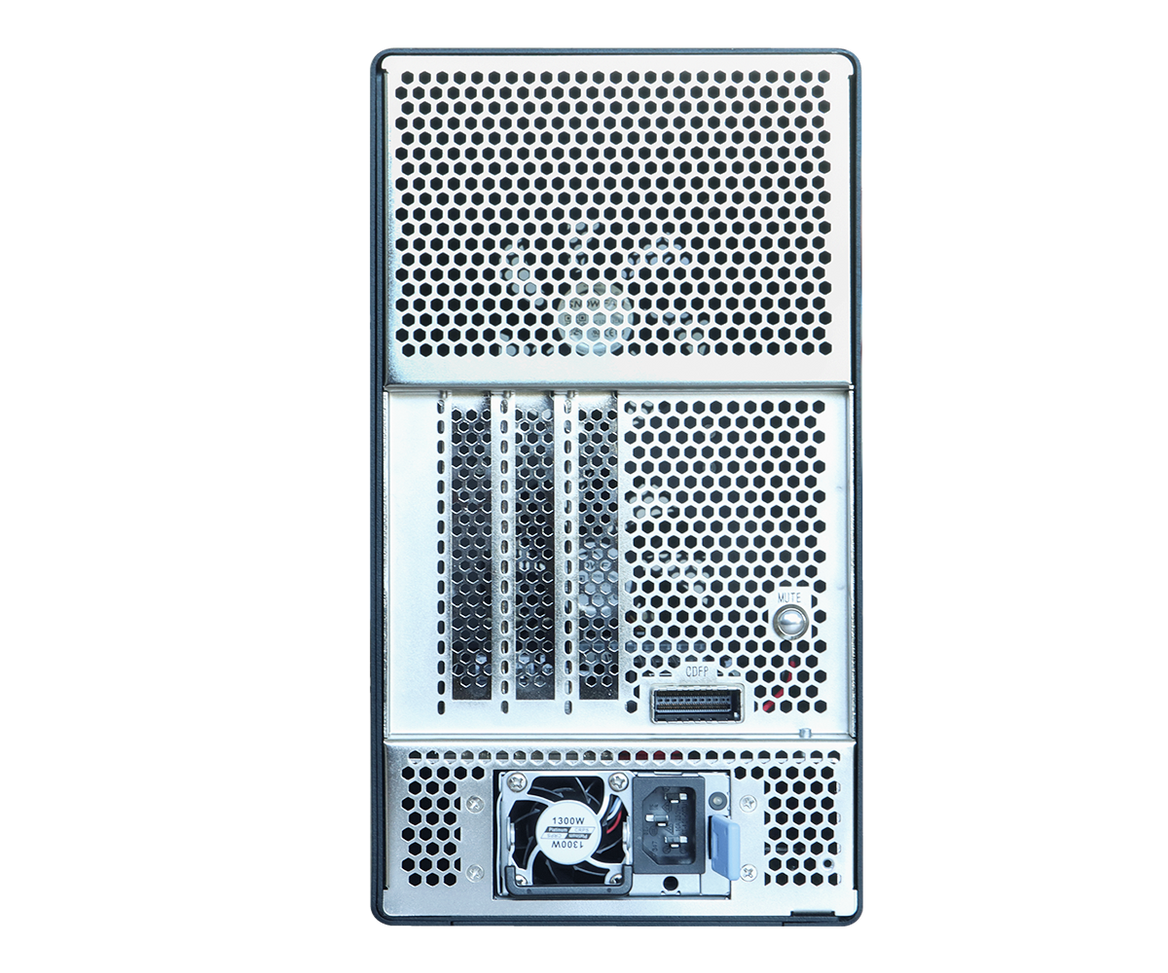

Back Panel
CDFP Port	Upstream Port for PCIe 5.0 1x16
Mute Button	used to mute the audible alarm
Supported Systems
OS Support	Any OS with native PCIe device support
Software Secure Boot	Yes
Hardware Secure Boot	Yes
Management Software
Firmware Upgrade Tools (MPT Utility)	Used to upgrade both the MCU firmware and Retimer Firmware
Operating Environment
Work Temp	+5°C ~ + 55°C
Storage Temp	-20°C ~ +80°C
Operating Voltage	100V ~ 240V AC In
Power Supply	1300W
Kit Contents
Kit Contents	1x RocketStor 8631D Enclosure
	1x Gen5 CopprLink Cable (1M)
	1x QIG
	12V-HPWR to 2x4 Power Cable x1
	1x UL Cable
Optional Accessories	Rocket 7638D PCIe 5.0 x16 External Expansion Adapter
	Rocket 7634D PCIe 5.0 x16 External Expansion Adapter

Performance Without Physical Limits

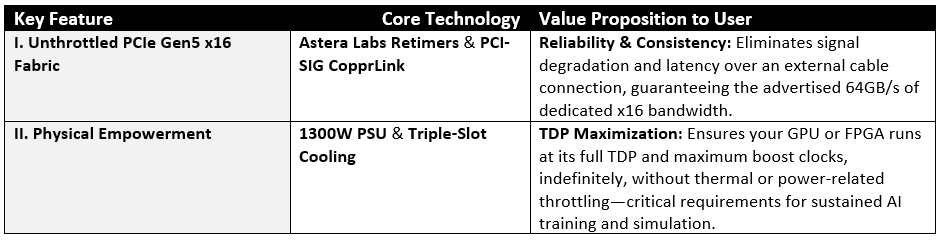

The RocketStor 8631D is not just an expansion box; it is a guaranteed high-performance solution for your most expensive compute resources. This is made possible

by the designs two key features:

The RocketStor 8631D is the industry's first enclosure to satisfy all these requirements simultaneously, making it the definitive platform for scaling accelerator performance across demanding vertical industry applications.

Unlocking Uncompromised Gen5×16 Performance

Maximum performance requires maximum technological commitment. The RocketStor 8631D is built around the fastest and most reliable connectivity standards available today:

Astera Labs Gen5 Retimer Technology: Integrated Retimer technology actively cleans, reshapes, and amplifies the PCIe signal. This is crucial for maintaining signal integrity and resetting the jitter and insertion loss budgets over the external cable, ensuring the host server sees a clean, low-latency Gen5×16 link for reliable, sustained throughput.

PCI-SIG CopprLink Standard: The enclosure features a robust, enterprise-grade external PCIe x16 Gen5 CDFP connector. By adhering to the PCI-SIG CopprLink specification, the RocketStor 8631D guarantees maximum bandwidth and seamless interoperability with HighPoint's CopprLink Host Interface Cards (HICs) and other compliant devices.

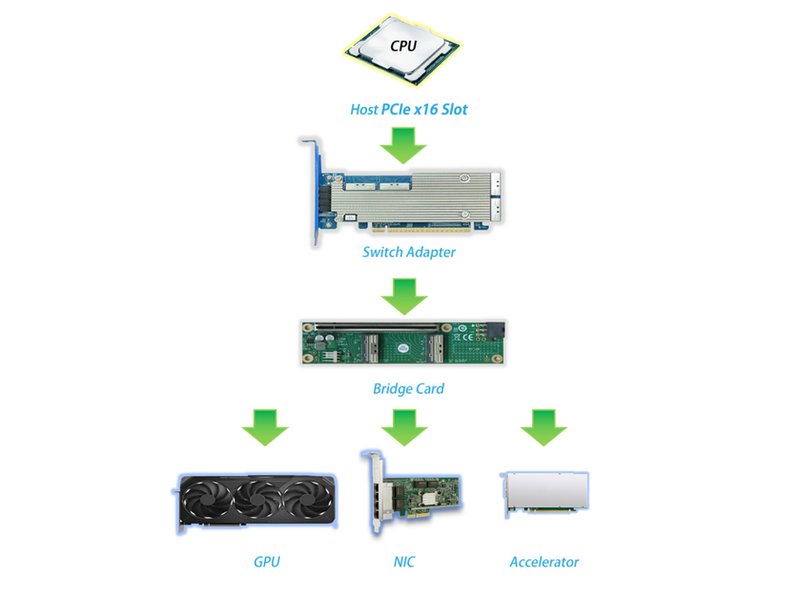

Application Focus: Dedicated PCIe Gen5 Fabric

When paired with a HighPoint External PCIe Switch Adapter, the RocketStor 8631D delivers true host-to-device PCIe Gen5 x16 performance for workloads such as scientific modeling, real-time analytics, and high-resolution rendering.

Engineered for Maximum TDP & Reliability

High-speed technology must be paired with superior physical engineering. The RocketStor 8631D is landmarking the industry's first enclosure to address the power and cooling requirements of next-generation accelerators, ensuring maximum TDP (Thermal Design Power) is sustained without throttling or component breakdown.

Unrestricted Power Delivery

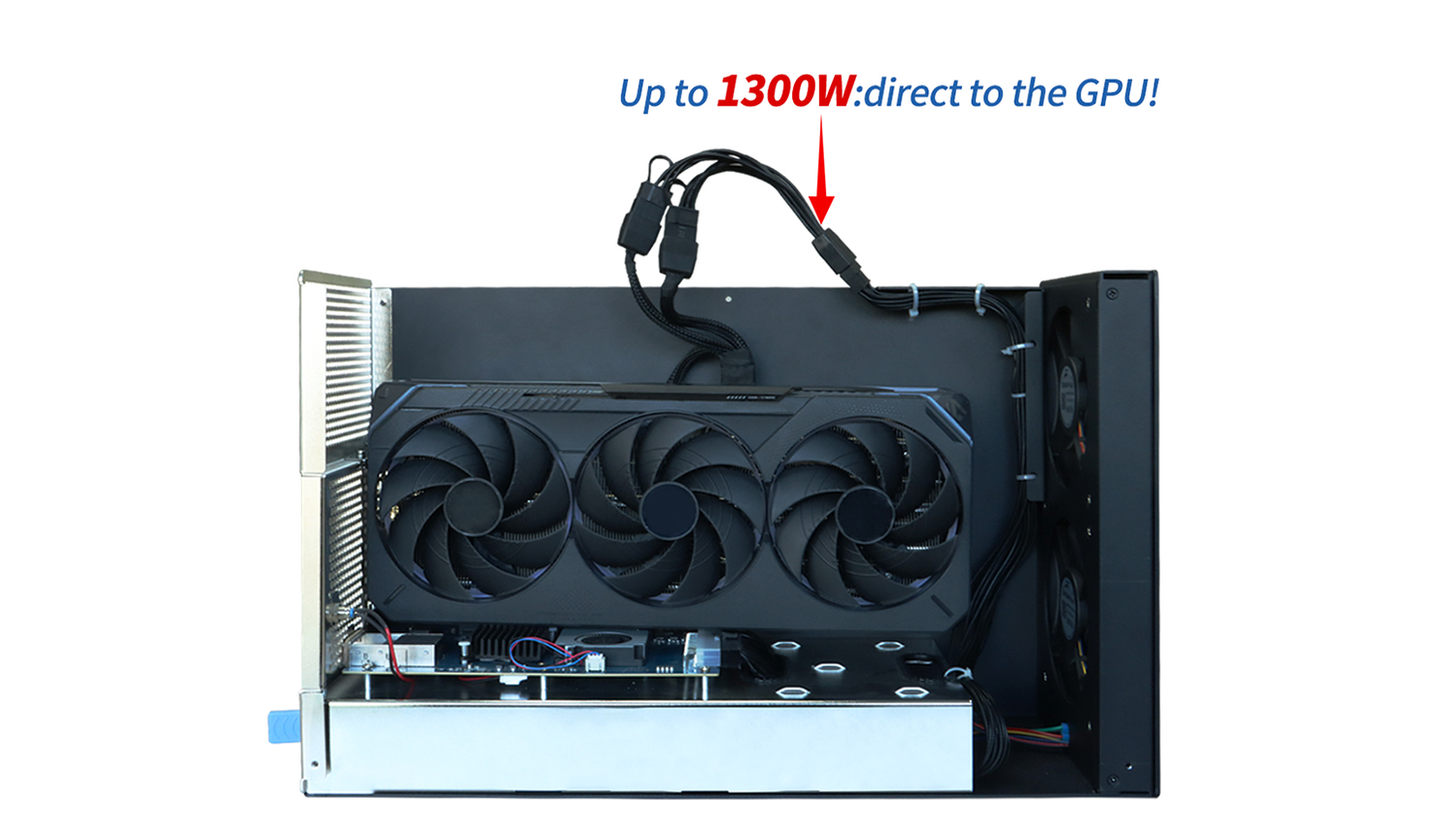

Massive 1300-Watt PSU: The RocketStor 8631D upscales power support from 850W to 1300 Watts via a new integrated PSU. This immense capacity significantly widens the range of supported compute and accelerator cards from all vertical industry applications.

This guarantees dedicated, stable power delivery for performance-hungry workflows, preventing unexpected system shutdowns and prolonging component lifespan.

Advanced Thermal Management

Advanced, Intelligent Cooling Solution: A robust, reliable cooling system is a critical component of any expansion chassis. The RocketStor 8631D advanced Gen5 cooling solution is second to none.

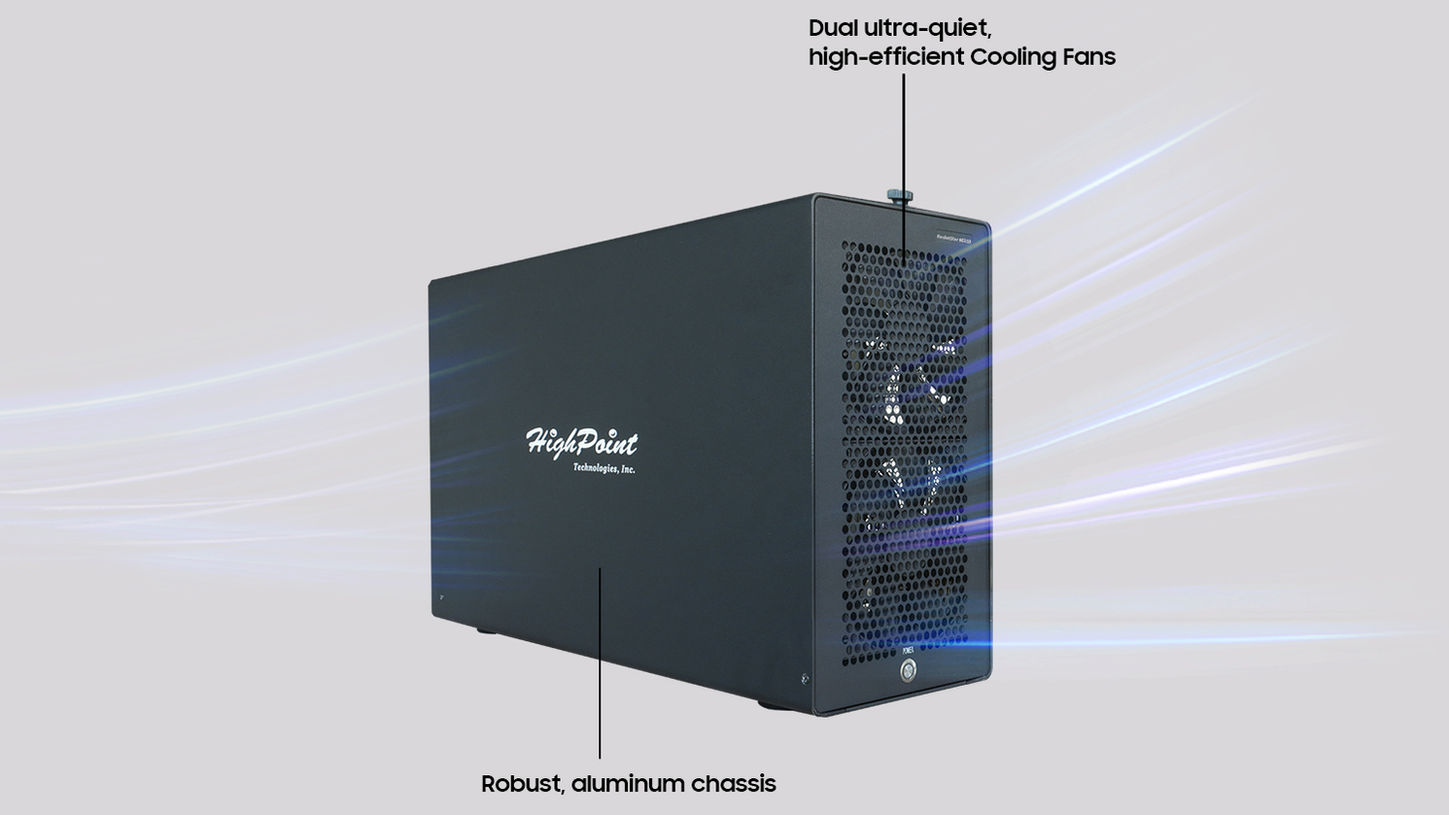

The enclosure’s powerful cooling fans, backed by a bank of integrated hardware sensors and programmable Smart Fan Control, dynamically adjust airflow within the chassis to address thermal load in real time. This sophisticated system prevents performance throttling while keeping the solution’s acoustic performance in mind.

Streamlined Internal Layout: The RocketStor 8631D chassis was precision engineered to reduce cable clustering and minimize obstructions, ensuring superior, unhindered airflow directly over the most critical components.

Universal Physical Compatibility

Triple-Slot Width Design: The enclosure's chassis is specifically designed for universal PCIe GPU compatibility, including industry-standard full-height, 2-slot, and 3-slot PCIe Gen5 GPUs from all leading manufacturers. This commitment to physical sizing ensures maximum flexibility for integration projects.

Applications & Use Cases

The RocketStor 8631D's unique hardware architecture, power delivery and uncompromised performance make it ideal for high-demand applications including AI/ML Computing & Deep Learning, Scientific Research & Big Data Analytics, Enterprise Workloads & Cloud Solutions, 3D Design & Rendering, and professional Media Editing Platforms.

AI/ML Computing & Deep Learning

Use Cases: Neural Networks training, running AI algorithms, & real-time data analytics

Benefits: Accelerates data loading and model training times, supporting high-throughput data processing.

HPC, Scientific Research & Big Data Analytics

Use Cases: Applications that process immense volumes of data such as real-time analytics and business intelligence applications

Benefits: Rapid access to massive datasets, results in faster analytics and insights generation.

High-Performance Content Creation & Rendering

Use Cases: Development platforms for Virtual Reality (VR) and Augmented Reality (AR) applications, 3D Rendering & Design, and Professional Media Production

Benefits: HighPoint RocketStor 8000 series enclosures are the ultimate solution for professionals in the content creation and rendering industries, offering the power, flexibility, and performance needed to turn creative visions into reality.

RocketStor 8000 series HighPoint eGPU enclosure RS8000 RocketStor 8631CW RS8631CW

eGPU Expansion Chassis

Enclosure-only eGPU expansion platforms, with optional host connectivity via the the Rocket 7634D PCIe Gen5 x16 CDFP (CopprLink) Adapter (sold separately).

Product	PCIe Bandwidth	Power (PSU)
RocketStor 8631D	PCIe 5.0 x16	1300W
RocketStor 8631C	PCIe 5.0 x16	600W, 850W
RocketStor 8531A	PCIe 4.0 x16	600W, 850W

eGPU Expansion Enclosure Kits

RocketStor 8000 eGPU Expansion Enclosure Kits are complete solutions, and are with bundled a PCIe Gen4/Gen5 x16 CDFP host adapter and CDFP cabling.

Product	PCIe Bandwidth	Power (PSU)
RocketStor 8531AW	PCIe 4.0 x16	600W, 850W
RocketStor 8631CW	PCIe 5.0 x16	600W, 850W
