Passive vs. Active: Why Signal Integrity is the Silent Performance Killer
- Mar 16
- 3 min read
The Gen5 Reality Check
For PCIe Gen3, signal integrity was manageable. With the onset of PCIe Gen4, it became a challenge. And now, in the era of PCIe Gen5, it is a battle against physics. When you are moving data at 32GT/s, the margin for error effectively disappears.
For IT professionals designing disaggregated AI clusters, the choice between "Passive" and "Active" cabling is the difference between a high-performance fabric and a system plagued by "silent" performance degradation.
The Physics of 32GT/s: What is Signal "Blurring"?
In digital communication, data is sent as electrical pulses. At Gen5 speeds, these pulses are so fast—32 billion transfers per second—that the physical properties of copper wire begin to work against you.
Frequency-Dependent Loss: High-frequency signals degrade faster than low-frequency ones. By the time a Gen5 signal travels just 0.5 meters, the "sharp edges" of the digital pulses become rounded and smeared.
Intersymbol Interference (ISI): This "blurring" causes pulses to bleed into one another. To the receiver (your GPU), the data becomes an unreadable mess of electrical noise.
Retimers vs. Redrivers: Amplification is Not Regeneration
When engineers realize a passive cable won't work, they often look for a "repeater" solution. However, not all repeaters are created equal.
The Redriver (the “Megaphone”): A Redriver is an analog component that simply amplifies the incoming signal—noise and all. While it can extend reach, it also boosts any "blurring" and jitter included with the signal. It’s akin to using a megaphone to help someone hear a person who is mumbling; the sound is louder, but no clearer than before.
The Retimer (the “Translator”): Retimers are core components of HighPoint’s PCIe CopprLink Architecture—is a protocol-aware digital device. It uses Clock Data Recovery (CDR) to physically "re-time" and regenerate the signal. It receives the messy, blurred data, extracts the "clean" digital info, and re-transmits a brand-new, pristine copy of the signal.
The "Perfect Eye Diagram": Engineering for Signal Clarity
In high-speed data transmission, the "Eye Diagram" is considered ae gold standard for validating signal integrity. A wide, "open eye" indicates that the signal is pristine, allowing the GPU to clearly distinguish between digital bits at 32GT/s.
HighPoint’s External CopprLink PCIe Architecture is purpose-built to maintain this level of integrity across distances that would cripple legacy expansion solutions:
The Passive Limitation: Once the two-meter threshold is reached, a standard passive cable cannot overcome the natural physics of signal decay. The resulting "eye" effectively closes, which often leads to link training failures or forces the system to drop to Gen3 speeds to maintain a basic connection.

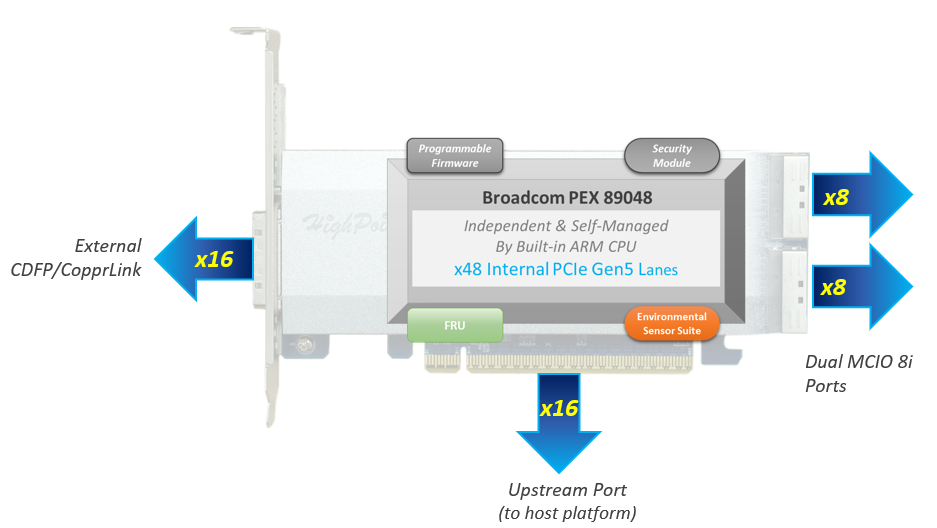

The External CopprLink PCIe Architecture: By integrating a high-performance PCIe Switch or Astera Labs Retimer into the Host Adapter, paired with an additional Astera Labs Retimer within the external Expansion Node, HighPoint’s CopprLink Architecture overcomes these physical barriers . This "dual-stage" conditioning is designed to "reset" the jitter and insertion loss budgets at each connection point. This sophisticated approach targets a wide-open, "perfect" eye diagram—ensuring a native, high-speed data path that remains stable and reliable across the full 2-meter reach.
Conclusion: Don't Starve AI Infrastructure with Passive Cabling
Your AI accelerators are only as fast as the data reaching them. A "cheap" passive cable that causes Bit Errors forces the system to re-transmit packets, creating a massive "silent" performance tax.
HighPoint’s External PCIe CopprLink Architecture removes the guesswork. It doesn’t stop at amplifying the signal; it is designed to guarantee the signal’s integrity from the Host to the Expansion Node.
Next in this Series: The 3 Pillars of HighPoint’s External CopprLink Architecture.
Previous Article: CopprLink: The New Standardized Language of Gen5 Connectivity
Learn More About HighPoint’s External PCIe CopprLink Architecture:
