HighPoint RocketStor 8631 Series: The Industry’s First Native CopprLink Gen5 Expansion Nodes

Unleash High-TDP Accelerators. Standardized CopprLink Connectivity. Native 64GB/s Performance.

Solving the Compact Server Bottleneck

Modern AI and HPC workloads require massive GPU and Accelerator power, but today’s compact server nodes are physically limited. When a server runs out of physical slots, power headroom, or cooling capacity, performance is sacrificed.

The RocketStor 8600 Series is engineered to solve this crisis. By relocating high-TDP accelerators into a dedicated external expansion node, you eliminate the heat and power burden from the host server node. This iinovative hardware architecture allows compact servers to utilize full-sized, high-wattage cards—such as the NVIDIA H200—that would otherwise be impossible to house or cool internally.

RocketStor 8600 Series enclosures integrate Active Retimer technology, to ensure hosted PCIe devices maintain a "locked" 64GB/s Gen5 x16 connection at distances up to 2 meters. HighPoint External CopprLink PCIe Architecture is built upon the PCI-SIG CopprLink (CDFP) specification (SFF-TA-1032), providing a truly vendor-neutral hardware environment for the next generation of data center infrastructure.

This architecture provides a seamless, high-performance bridge between three critical points:

The Host: Intelligent Switching/Retimer Adapters

The Pathway: Gen5 x16 CopprLink Cabling

The Node: Active, Retimer/ Switching-equipped Expansion Enclosures

How CopprLink™ Enclosures Benefit Targeted Applications

A standardized, high-speed enclosure is the cornerstone of a truly disaggregated data center, providing massive advantages for:

Edge AI & Compact Computing: Empower small-form-factor servers with massive GPU power for real-time AI inferencing without upgrading the entire server rack.

GPU-Accelerated LLMs: House power-hungry accelerators in a dedicated thermal environment, ensuring they run at peak boost clocks without thermal throttling.

The Advantage of External Switching: Composable Infrastructure

Traditional external PCIe expansion often relies on complex, high-latency bridging protocols. HighPoint’s approach is different; our proven 48-lane PCIe Gen5 switching architecture ensures that the external connection is a transparent extension of the PCIe bus.

Dedicated Gen5 x16 Per Port: Unlike conventional external expansion interfaces, such as Thunderbolt, CopprLink technology enables the RocketStor 8600 series enclosure to guarnatee x16 lanes of transfer performance. This ensures maximum throughput for every connected GPU or accelerator, even when under 100% load.

Industry-Leading Signal Integrity: Designed specifically for the rigorous electrical demands HPC, AI and professional media workflows, our external eGPU & Accelerator enclosures utilize premium CDFP/CopprLink connectors to prevent signal degradation over distance.

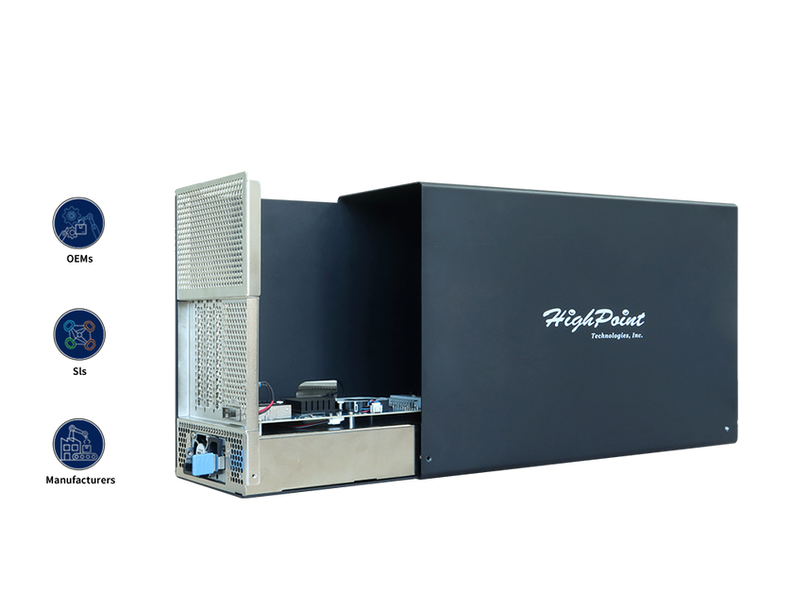

Introducing HighPoint's External CopprLink™ PCIe Gen5 Enclosures

Extend Your PCIe Fabric with High-Fidelity, External Gen5 Connectivity

The RocketStor 8631 series represents the first physical implementation of HighPoint’s External Active PCIe Architecture. These enclosures are fully compatible with industry-standard CopprLink Host Adapters, such as the HighPoint Rocket 7638D and Rocket 7634D.

Feature	RocketStor 8631D	RocketStor 8631C
Primary Interface	1x External CDFP (CopprLink)	2x MCIO x8 Ports (Internal)
Max Power Support	1300 Watts	Up to 600 Watts
Target Device	Ultra-High TDP GPUs (H100/H200/B100)	Standard AI Accelerators & FPGAs
Signal Management	Integrated Active Retimers	Integrated Active Retimers
Max Bandwidth	Native PCIe Gen5 x16 (64GB/s)	Native PCIe Gen5 x16 (64GB/s)
Internal Slot	1x PCIe Gen5 x16 (Triple-Slot Width)	1x PCIe Gen5 x16 (Triple-Slot Width)
Host Compatibility	CopprLink™ Host Adapters	CopprLink™ Host Adapters
Host Compatibility	(Rocket 7634D / 7638D)	(Rocket 7634D / 7638D)

Advanced Thermal Management

Advanced, Intelligent Cooling Solution: The enclosure’s powerful cooling fans, backed by a bank of integrated hardware sensors and programmable Smart Fan Control, dynamically adjust airflow within the chassis to address thermal load in real time. This sophisticated system prevents performance throttling while keeping the solution’s acoustic performance in mind.

Streamlined Internal Layout: RocketStor 8600 series chassis are precision engineered to reduce cable clustering and minimize obstructions, ensuring superior, unhindered airflow directly over the most critical components.

Universal Physical Compatibility

Triple-Slot Width Design: The enclosure's chassis is specifically designed for universal PCle GPU compatibility, including industry-standard full-height, 2-slot, and 3-slot PCle Gen5 GPUs from all leading manufacturers. This commitment to physical sizing ensures maximum flexibility for integration projects.

The HighPoint CopprLink Ecosystem

A standard is only as strong as its end-to-end reliability. HighPoint provides the only fully-validated Gen5 signal chain in the industry:

The Host Anchor: Rocket 7634D (Dedicated External) and Rocket 7638D (Hybrid Internal/External) adapters provide the intelligent switching logic and CDFP ports.

The Pathway: Certified Gen5 x16 CopprLink™ (CDFP) cables provide the shielded 64GB/s highway.

The Destination: RocketStor 8631 Series enclosures use Active Retimers to re-clean and re-transmit the signal, ensuring 100% integrity at the device level.

Open for OEM & Custom Enclosure Projects

HighPoint’s CopprLink enclosure architecture is modular and ready for deep-level OEM customization. We specialize in helping partners desigen and build unique external nodes for specific industrial and end-customer requirements.
