PCIe Gen5 Retimer NVMe AIC Solutions
Active Signal Integrity for High-Density Expansion and Industry-Leading Boot RAID Performance
HighPoint’s Retimer-based PCIe AIC Expansion solutions address a critical constraint in modern high-performance system design: the deficit of native motherboard Gen5 M.2 ports and the limitations of standard boot configurations. As system architectures advance to PCIe Gen5 speeds of 32GT/s, unamplified signals degrade rapidly over trace distances through slots and adapter boards.
HighPoint Retimer AICs resolve this distance-based degradation by providing active signal regeneration directly between the host CPU and the M.2 ports. This architecture ensures reliable signal quality, full Gen5 speeds, and access latencies that remain as close to native onboard motherboard M.2 ports as physically possible. Whether deploying high-density NVMe expansion for raw computing workloads or establishing an ultra-fast, redundant OS boot environment, HighPoint Retimer AICs deliver maximum throughput and rock-solid stability.
HighPoint Gen5x16 Active Retimer Arhitecture
Direct Gen5 x16 CPU Connectivity
Leverages a full PCIe Gen5 x16 host interface with required x4/x4/x4/x4 CPU bifurcation.
-
Direct Lane Mapping: Each onboard M.2 device receives a dedicated Gen5 x4 lane.
-
True Parallel Architecture: Eliminates shared-bandwidth bottlenecks and nearly Zero PHY-Level latency
-
Near-Zero-Latency Execution: Native CPU-driven connectivity for maximum throughput.
Active Signal Conditioning – Retimer Engine
At 32GT/s speeds, signal integrity is critical. The integrated Advanced Retimer Engine ensures stable Gen5 performance.
-
Signal Regeneration: Re-clocks and restores weakened I/O signals.
-
Jitter & Loss Compensation: Eliminates insertion loss from PCB traces or cabling.
-
Bit-Perfect Distribution: Delivers clean Gen5 signals to all 4x M.2 ports — including remote MCIO-connected devices.
Smart Firmware Intelligence Layer
Unlike passive adapters, the Rocket 1604L features onboard management firmware providing real-time system insight:
-
Power Monitoring: Per-device wattage visibility for rack-level optimization.
-
Lane Verification: Confirms each device negotiates full Gen5 x4 speed.
-
Thermal Telemetry: Real-time board and slot temperature monitoring to prevent throttling.
FRU Module (Field Replaceable Unit)
The Roxket 1604L feature an FRU Module to streamline maintenance and service workflows. It stores Vital Product Data (VPD), including the AICs hardware revision and firmware history to ensure seamless replacement while minimizing dowtime for the host server.
Choose Your Architecture: Device Expansion vs. Premier Boot RAID
HighPoint's Retimer series is divided into two specialized product lines designed to match specific architectural and performance goals:

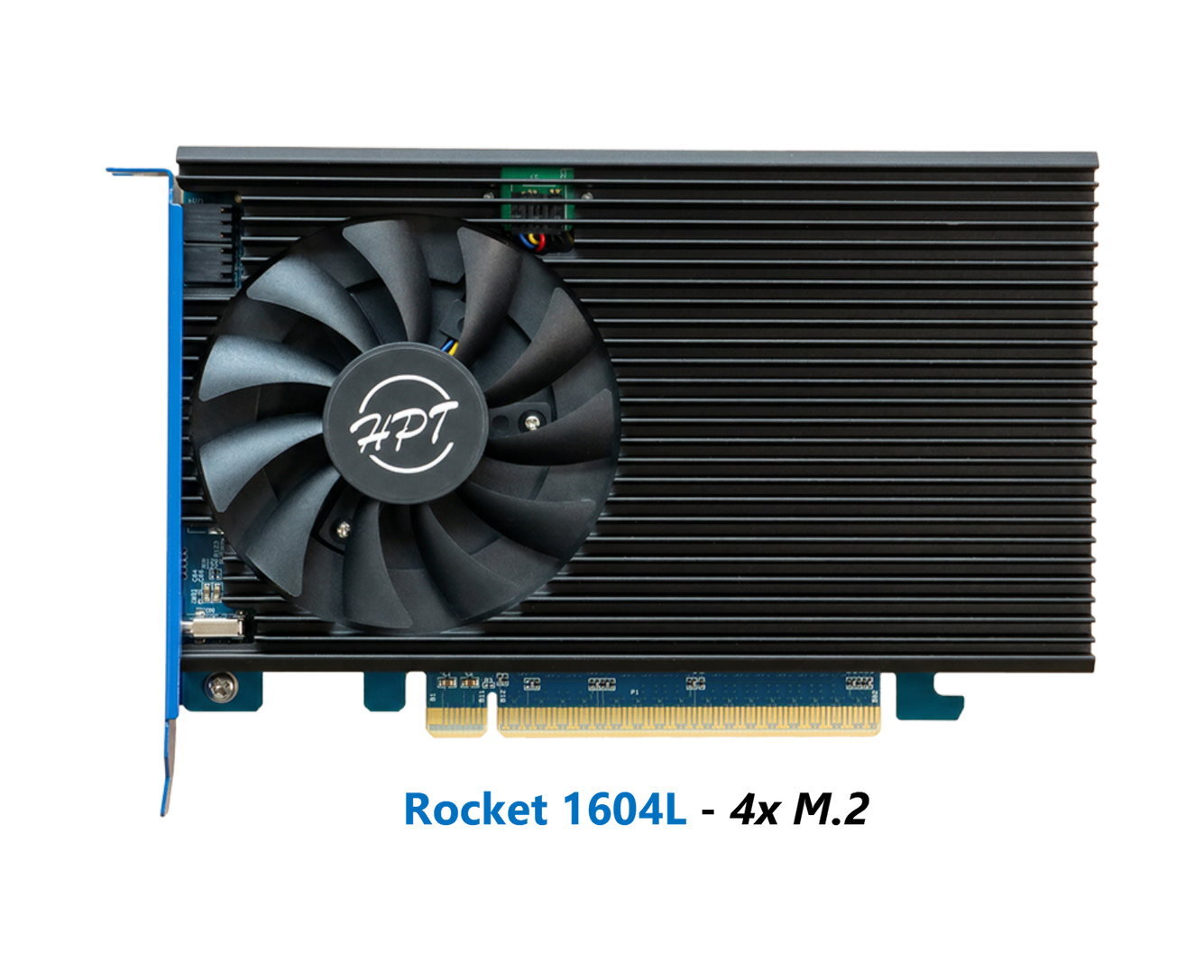

1. Pure NVMe Device & Compute Expansion (Rocket 1604L)
The Rocket 1604L is optimized for dense hardware layouts requiring maximum parallel drive connectivity. It provides host-bifurcated mapping, delivering a dedicated Gen5 x4 link to four independent M.2 devices or accelerators simultaneously. This ultra-compact AIC is built for high-throughput data ingestion, local scratchpads, and modular AI inference acceleration.
2. Industry-Leading Boot RAID Performance (Rocket 7602L)
The Rocket 7602L is the market's premier dual-port Gen5 boot solution, engineered specifically for high-performance workstations and professional server platforms. By pairing an active physical-layer Retimer engine with a full PCIe x16 host interface and HighPoint’s high-efficiency, driver-based storage management, it delivers unmatched boot array throughput. This unique architecture provides a streamlined, ultra-fast boot environment for RAID 0 and RAID 1 arrays without introducing signal degradation or performance bottlenecks.
The Core Advantages for AI & Enterprise Architects
Zero-Loss Signal Integrity: Unlike passive cards, our Retimer series re-clocks the data. This allows for stable performance even when using MCIO/SlimSAS cables to connect to remote PCIe slots.
Thermal Headroom for AI Workloads: AI accelerators and Gen5 NVMe drives generate immense heat. Our "Pro-Class" cooling architecture prevents thermal throttling, maintaining peak IOPS during heavy training cycles.
Dense Form Factor (The 40% Advantage): By optimizing the PCB layout, we’ve achieved a board length 40% shorter than the industry average, fitting into compact 2U AI Edge servers where others cannot.
Autonomous Monitoring: Integrated smart firmware provides real-time telemetry on lane status, power draw, and thermal health—essential for server-class uptime.
AI and Storage Applications
Smart Manufacturing & Industry 4.0 (The Primary Target)
Zero-Latency Vision Inspection for High-Speed Production
In factory settings, space is expensive, and vibrations/heat are constant.
Focus: Automated Optical Inspection (AOI) and Defect Detection.
Why opt for the Rocket 1604L: High-speed assembly lines move too fast for cloud processing. Manufacturers need 4x M.2 accelerators (like Axelera) in a single short-depth server. The Retimer ensures that the high-resolution image data from cameras reaches the AI modules without a single dropped frame, even in "noisy" electrical environments.
Intelligent Transportation & Smart Cities
Compact Intelligence for Urban Mobility Infrastructure.
This involves processing hundreds of data streams at the "Far Edge" (roadside cabinets or inside vehicles).
Focus: Real-time Traffic Management and Autonomous Fleet Operations.
Why opt for the Rocket 1604L: Roadside enclosures are tiny and reach high temperatures. A standard 4-port AIC is too long to fit. Your 167mm card fits perfectly, and the active cooling ensures the AI modules don't throttle while analyzing 4K traffic feeds for accident detection.
Healthcare & Digital Pathology
Sovereign AI Infrastructure for Real-Time Clinical Insights.
Modern medical imaging generates massive files that require instant AI analysis at the bedside or in a local clinic.
Focus: AI-Assisted Diagnostics (Radiology/Pathology).
Why opt for the Rocket 1604L: Privacy laws (HIPAA/GDPR) often prevent sending medical images to the cloud. Hospitals need "Mini-Datacenters" in the closet. The Rocket 1604L allows them to pack high-TOPS AI modules into quiet, 1U/2U short-depth servers that sit right next to the MRI or CT scanner.
High-Security Surveillance & Public Safety
.png)
High-Integrity Signal Paths for Mission-Critical Security
Large-scale venues (airports, stadiums) need to scan for threats across dozens of cameras simultaneously.
Focus: Multi-Channel Video Analytics (Behavioral & Facial Recognition).
Why opt for the Rocket 1604L: Feeding 16+ camera streams into AI requires a massive "Data Feeder." The 1604L's Retimer technology ensures that even if the AI modules are cabled via MCIO to a cooler part of the rack, the signal integrity is preserved, preventing the "stuttering" that can cause a security system to miss a critical event.
Energy & Remote Infrastructure (Oil, Gas, Wind)
Self-Aware Connectivity for Unattended Edge AI Deployment.
Monitoring remote assets for "Predictive Maintenance" using vibration and thermal sensors
Focus: Anomaly Detection at the Far Edge.
Why opt for the Rocket 1604L: These systems are often "headless" and located in harsh environments. HighPoint’s Smart Firmware Telemetry is the selling point here—allowing remote engineers to check the "Health and Lane Status" of the AI accelerators from thousands of miles away.
Smart Manufacturing & Industrial Automation
High-speed production environments require real-time processing and extreme physical stability at the edge.
Application Focus: Zero-latency vision inspection, automated optical defect detection, and high-TOPS accelerator integration.
The Retimer Expansion Advantage: The Rocket 1604L packs maximum parallel device density into a chassis-friendly form factor. The active retimer ensures that high-resolution data streams reach downstream M.2 modules flawlessly, maintaining peak signal integrity even in electrically noisy factory environments.
Architect's Tip: When maximizing parallel device or accelerator density for raw data ingestion and edge compute clusters, choose the Rocket 1604L. When deploying the market's fastest, most reliable redundant Gen5 boot array for a professional operating system, choose the Rocket 7602L.
Resources
HighPoint NVMe Switch Adapters and Systems from our Partners
M.2 NVMe Retimer AIC Product Lines
NVMe Retimer AIC
Product | Image | Primary Application | Bus Interface | Device Capacity | Core Features | Form Factor |
|---|---|---|---|---|---|---|
Rocket 1604L | Pure NVMe / Device Expansion | PCIe 5.0 x16 | 4x M.2 (2242/2260/2280) | Dedicated Gen5 x4 Per Device, Direct Host-Bifurcated Mapping, Near-Zero Latency | Ultra-Compact (167mm) | |
Rocket 7602L | Bootable NVMe RAID & Expansion | PCIe 5.0 x16 | 2x M.2 (2242/2260/2280) | HighPoint RAID 0, 1, JBOD; OPAL SSC SED Encryption; Onboard Visual/Audible Hardware Alarms | Low-Profile (1U/2U Server Ready) |
