Redefining Server Density: HighPoint MCIO PCIe Gen5 Expansion Solutions
Unleash the Full Potential of GPUs and FPGAs with an Intelligent Internal Fabric
For modern AI training and High-Performance Computing (HPC) platforms, the internal PCIe architecture is often a "silent killer" of application performance, especially for demanding AI, HPC and real-time edge computing workflows Standard motherboard designs force data through the CPU root complex, creating bottlenecks that starve high-speed accelerators.
HighPoint’s MCIO PCIe Gen5 x16 Expansion Adapters are designed for IT architects who refuse to compromize I/O performance in space-constrained environments. By leveraging Mini Cool Edge IO (MCIO) cabling and sophisticated PCIe switching, we’ve decoupled the physical PCIe slot from the motherboard, enabling a modular, high-performance approach to system design.
The HighPoint Advantage: Intelligent PCIe Switching Architecture

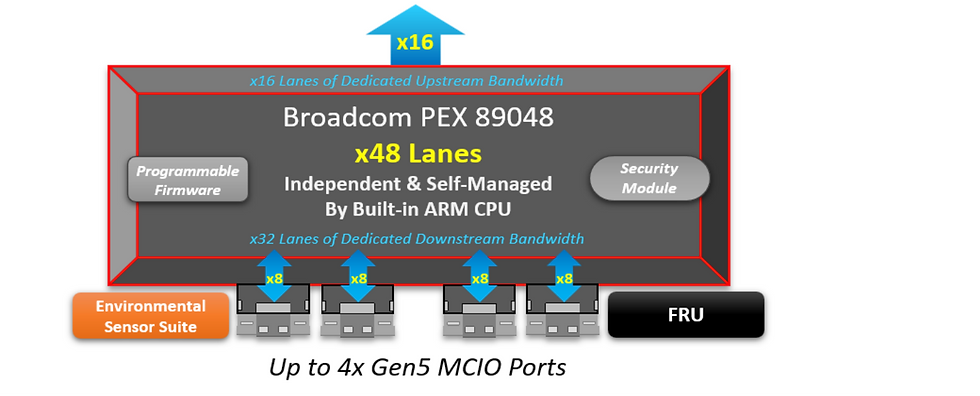

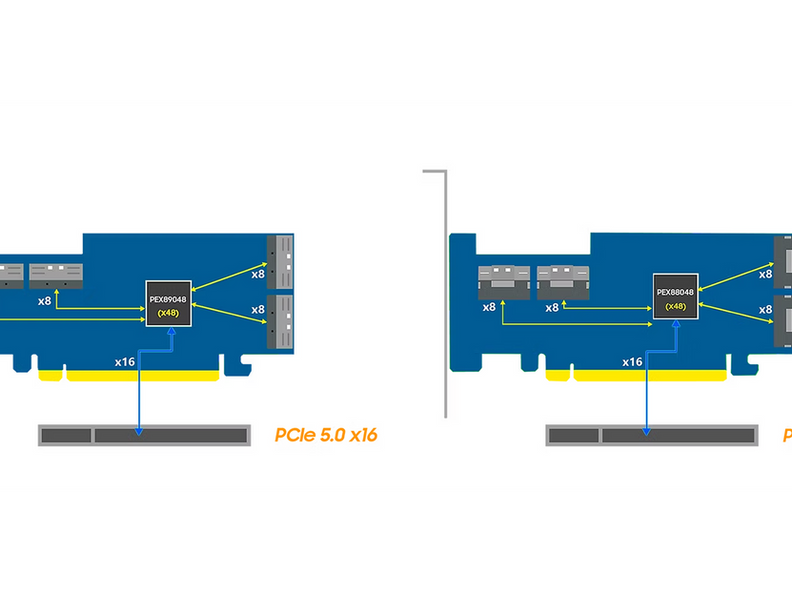

At the heart of our solution is a sophisticated 48-Lane PCIe Gen5 Switching Architecture. This isn't just a physical bridge; it's an intelligent management layer that optimizes data flow at the hardware level.
Integrated ARM Processing Unit: The switch architecture utilizes a dedicated onboard ARM processor to independently manage Gen5 lanes and resource control. By offloading these management tasks from the host platform, the adapter eliminates CPU overhead, ensuring the system's processors can focus entirely on your primary application logic.
Native PCIe OS Support (Plug & Play): A critical advantage for IT deployment is that HighPoint switching architecture is supported by Native PCIe Bus Drivers. Because it adheres to industry-standard PCIe protocols, it is inherently Plug & Play across all mainstream operating system platforms (Windows, Linux, and macOS). This support is not limited to storage; any PCIe device—from GPUs and FPGAs to high-speed NICs—will be automatically recognized and managed by the OS, ensuring seamless integration into any professional environment.
Intelligent Resource Allocation: The internal switching fabric allows for configurable lane allocation for each MCIO port, ensuring your most bandwidth-hungry devices receive a dedicated, non-blocking path.
Three Pillar Configurations for Industrial Mastery
HighPoint's MCIO ecosystem is engineered to solve the three most critical challenges in modern system design:
1. Unmatched PCIe Expansion Connectivity
Server chassis are getting smaller while performance demands are getting larger. HighPoint MCIO adapters allow a single PCIe x16 slot to be broken out into multiple high-density MCIO links. This enables IT architects to build high-density I/O nodes—supporting multiple accelerators or massive NVMe storage clusters—that would normally require a much larger, more expensive server footprint.
2. Direct P2P (Peer-to-Peer) Communication
In traditional architectures, data moving between two PCIe devices (e.g., multiple GPUs) must often "bounce" through the CPU, increasing latency and taxing system memory. HighPoint’s switching fabric enables Direct P2P connectivity, allowing devices to communicate directly across the adapter's internal switch. This bypasses the CPU entirely, slashing latency for time-sensitive applications like HFT or real-time signal processing.
3. Horizontal Mounting & Spatial Optimization

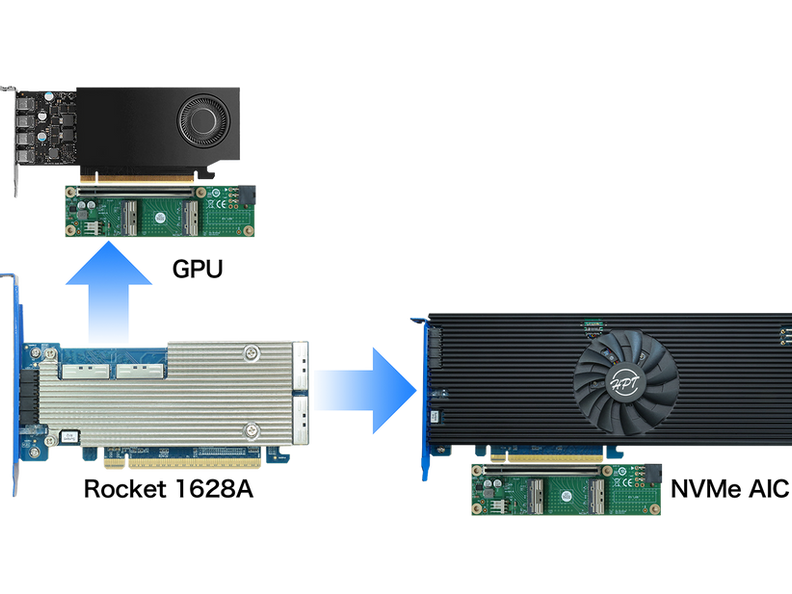

Vertical space is at a premium in 1U and 2U industrial servers. Standard riser cards are often rigid and obstruct airflow. HighPoint’s MCIO-PCIEX16-G5 Bridge Cards allow PCIe cards to be mounted horizontally. By using flexible MCIO cabling (supporting lengths up to 1 meter), you can position full-height PCIe devices anywhere within the chassis, optimizing thermal management and fitting high-performance hardware into slimline enclosures.
The Product Spotlight: The Internal Powerhouses
Our internal adapters utilize high-density MCIO (Mini Cool Edge IO) and SlimSAS interconnects to provide the cleanest signal path possible for Gen5 and Gen4 speeds.

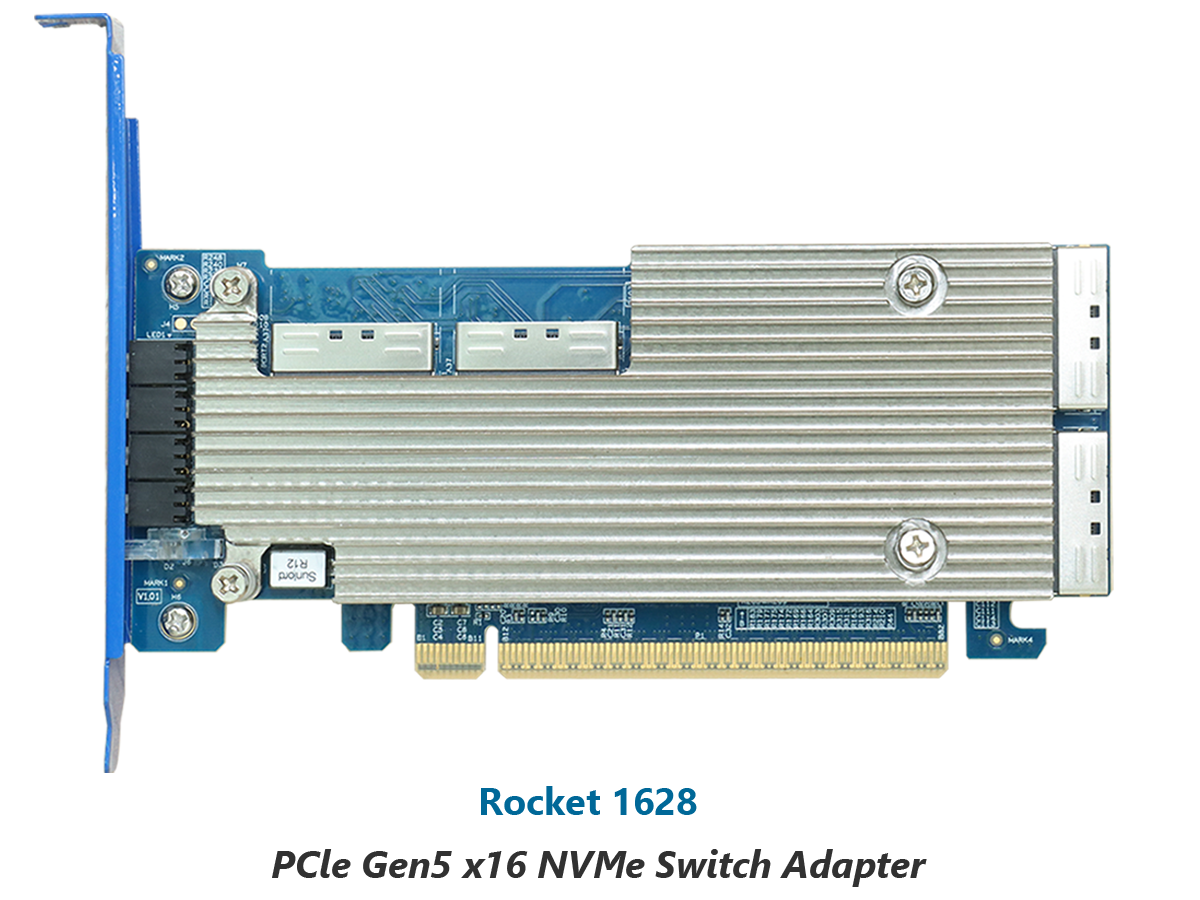

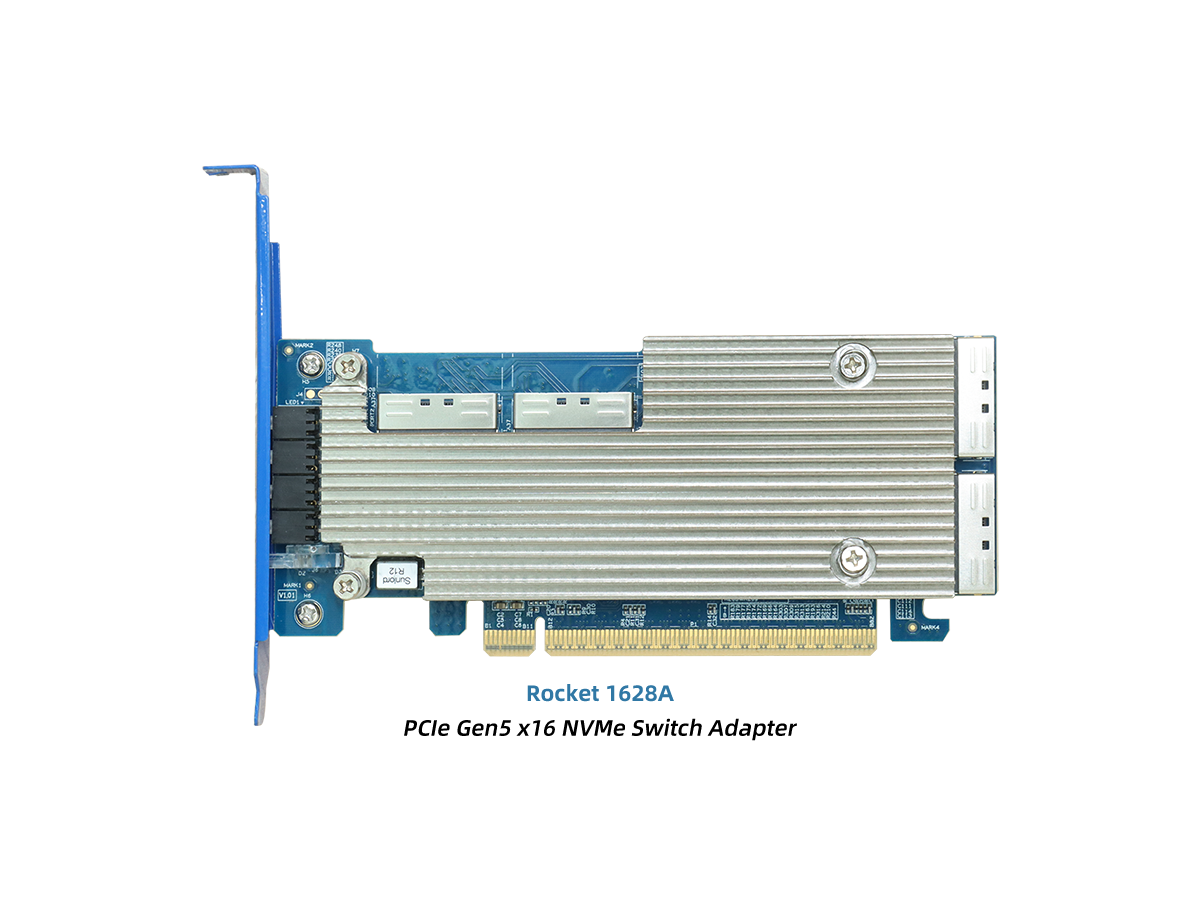

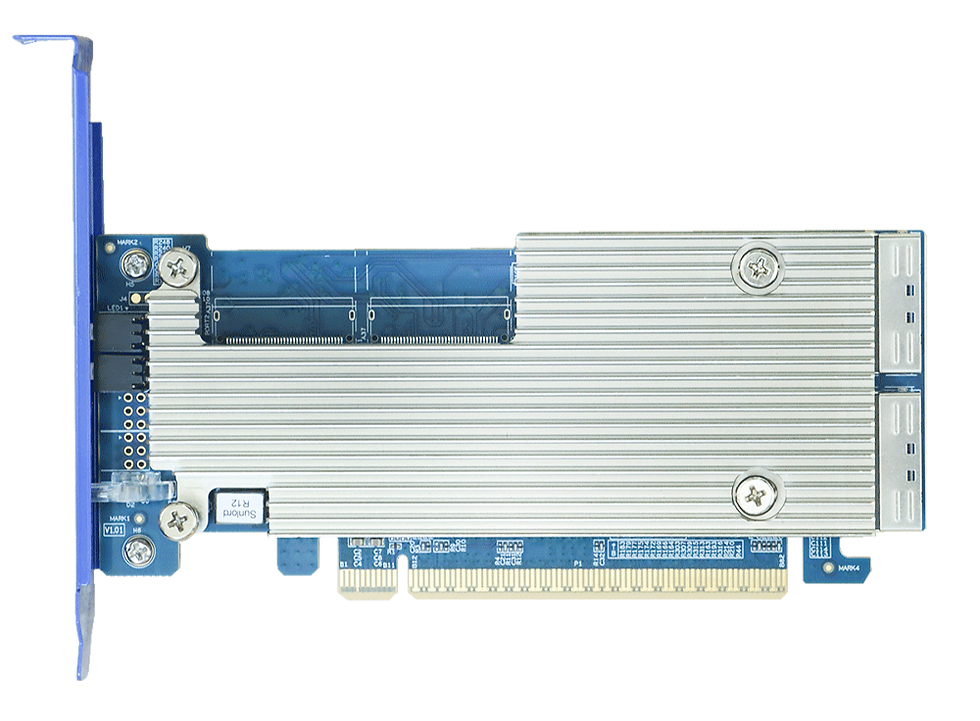

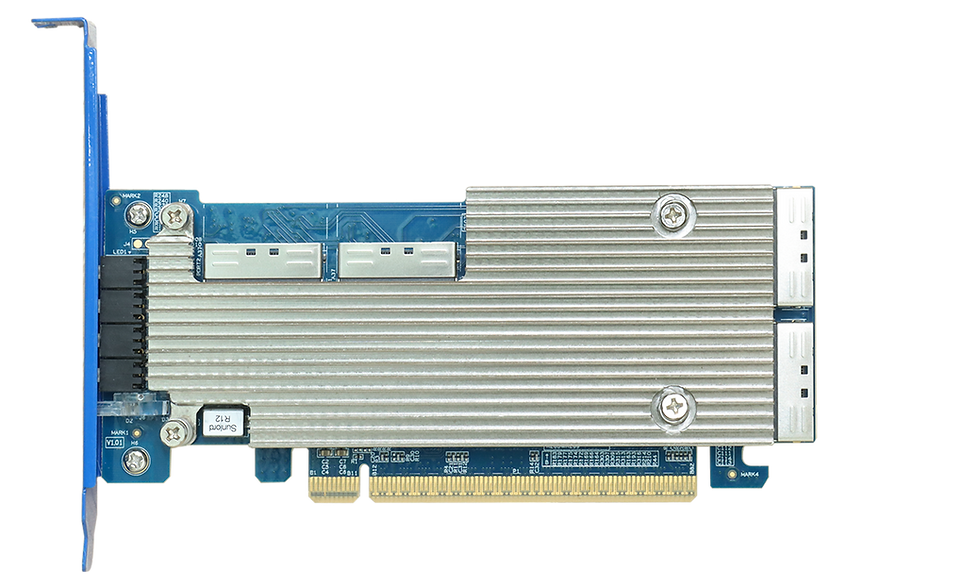

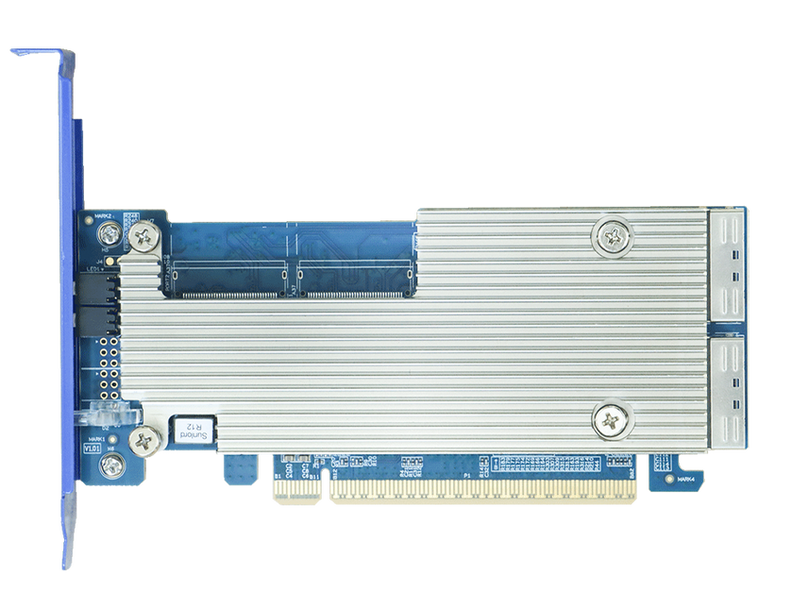

Rocket 1628A – The Gen5 Internal Flagship
Interface: 4x Gen5 x8 MCIO Ports
Throughput: Supports up to 64GB/s of aggregate bandwidth
Target Application: Designed for high-density AI servers/workstations that require multilpe Gen5 paths for top-teir GPUs and FGPAs
Rocket 1624A – Balanced Gen5 Compute
Interface: 2x Gen5 x8 MCIO Ports
Throughput: OPtimized for dual accelerator configurations
Target Application: Ideal for compact 2U server nodes or specialized compute modules where dual-device synchronization is critical

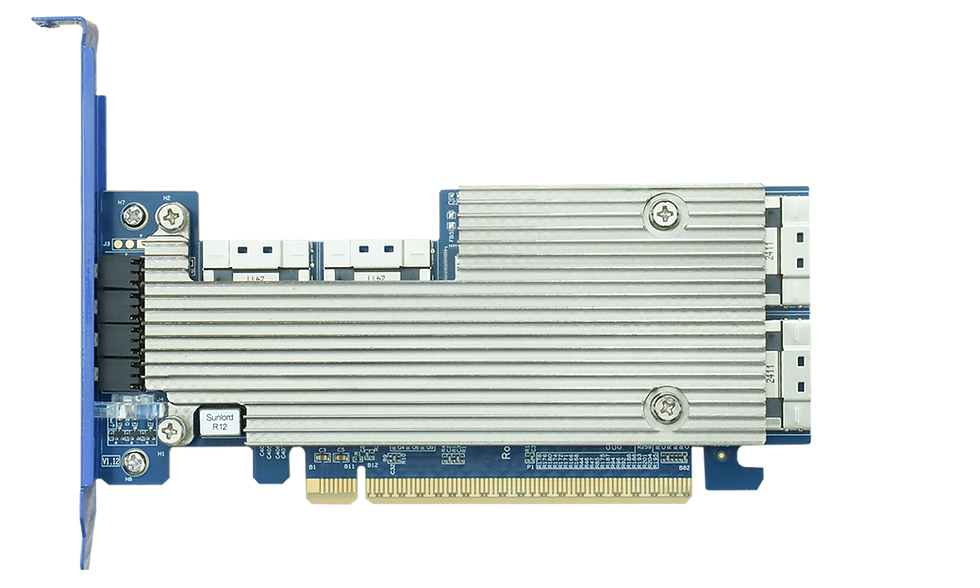

Rocket 1528D – Proven High-Speed, High-Density Soluton for Gen4 Platforms
Interface: 2x Gen4 x8 SlimSAS Ports
Throughput: Delivers up to 32GB/s for legacy and mid-tier clusters.
Target: The industry standard for FPGA signal processing clusters and high-performance PCIe Gen4 expansion environments.
The HighPoint MCIO Series: Technical Specifications
Model | Host Interface | Downstream Ports | Max Transfer Rate | Best For |
|---|---|---|---|---|
Rocket 1628A | PCIe 5.0 x16 | 4x MCIO x8 | 64GB/s | Maximum I/O density & Storage |
Rocket 1624A | PCIe 5.0 x16 | 2x MCIO x8 | 64GB/s | High-speed P2P Networking |
Rocket 1528D | PCIe 4.0 x16 | 4x MCIO x8 | 32GB/s | Cost-effective Gen4 expansion |
MCIO-PCIEX16-G5 | N/A (Bridge) | 1x PCIe 5.0 x16 | 64GB/s | Horizontal card mounting |

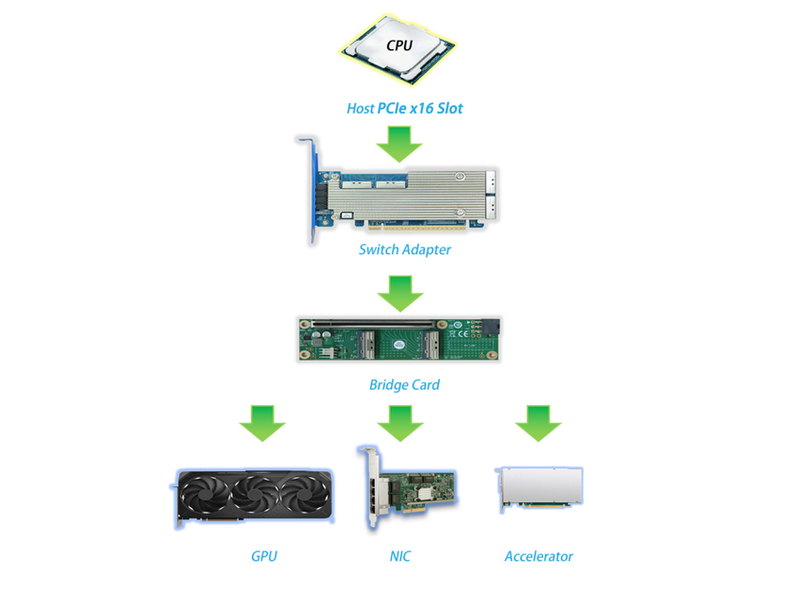

The MCIO-PCIEX16-G5 Expansion Bridge Card is the "missing link" for custom chassis designers. It transforms two MCIO x8 links back into a physical PCIe x16 slot, providing the freedom to place high-power peripherals anywhere in the enclosure where cooling is most efficient.
Why IT Experts Recommend HighPoint PCIe Switching Adapters?
Expert Insight: The move to Gen5 is not just about the port speed; it's about the switching logic behind the port. HighPoint's 48-lane architecture ensures that the host interface never starves the downstream accelerators, which is the single most common failure point in DIY AI server builds.
Platform Agnostic: Works with Intel, AMD, and ARM-based platforms without requiring complex BIOS bifurcation settings.
Signal Integrity: Every adapter is engineered to meet strict PCIe Gen5 electrical specifications, ensuring 100% link stability under full load.
Ecosystem Ready: Designed to work seamlessly with HighPoint MCIO to PCIe Modular Boards for flexible physical placement of accelerators within the chassis.
Resources
HighPoint NVMe Switch Adapters and Systems from our Partners
MCIO & CopprLink Adapter Product Lines
PCIe Gen5 Solutions
Product | Image | PCle | Ports | # of Devices | Cabling |
|---|---|---|---|---|---|
Rocket 7634D | PCIe 5.0 x16 | 1x CDFP | 1x CopprLink Device | n/a | |
Rocket 7638D | PCIe 5.0 x16 | 1 x CDFP;
2 x MCIO 8x | Up to 16x NVMe SSDs / 1x eGPU | Yes (MCIO ports) | |
Rocket 1624A | PCIe 5.0 x16 | 2x MCIO 8x | Up to 16 | Yes | |
Rocket 1628A | PCIe 5.0 x16 | 4x MCIO 8x | Up to 32 | Yes |
