Cable Accessories > SAS/SATA

Mini-SAS cables designed for Int. / Ext. connectivity, and use with the RocketStor Series of storage Enclosures and RocketRAID / Rocket HBA product lines; SFF-8088; SATA; SFF-8087; eSATA; Serial Attached SCSI;

HighPoint provides a wide selection Mini-SAS cables designed for internal and external connectivity, and use with the RocketStor Series of SAS/SATA storage Enclosures and RocketRAID/Rocket HBA product lines.

​

These high-quality cables are fully compliant with all current technology standards and have been rigorously tested with our Mini-SAS Enclosure & HBA product lines for use with a wide range of SAS/SATA devices & peripherals to ensure maximum transfer performance, secure connectivity, and ease of integration.

Versatile Connectivity

HighPoint Mini-SAS cables can accommodate a wide range of devices and applications, for internal and external configurations of SAS and SATA storage.

HighPoint Mini-SAS cables can accommodate a wide range of devices and applications, for internal and external configurations of SAS and SATA storage.

Backwards Compatibility

HighPoint Mini-SAS cables are capable of supporting both SAS and SATA devices, enclosures and storage units.

HighPoint Mini-SAS cables are capable of supporting both SAS and SATA devices, enclosures and storage units.

Secure Connectivity

Mini-SAS cables with SFF-8087 and SFF-8088 connector types feature locking mechanisms to ensure a secure, stable connection from host to device, and are a common cabling solution for professional and enterprise grade storage applications.

Mini-SAS cables with SFF-8087 and SFF-8088 connector types feature locking mechanisms to ensure a secure, stable connection from host to device, and are a common cabling solution for professional and enterprise grade storage applications.

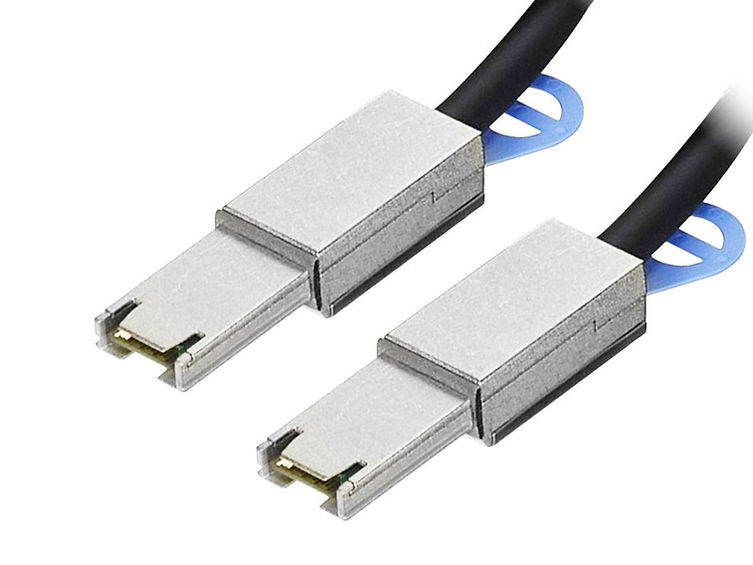

EXT-MS-1MMS

1M External Mini-SAS to External Mini-SAS cable

Supported Products:

RocketStor 6418AS, RocketStor 6418TS,
RocketStor 6414AS, RocketStor 6414TS,
RocketStor 6418S, RocketStor 6414S,

RocketRAID 4522SGL, RocketRAID 2722,

RocketRAID 2744,

Product Description:

1M SFF-8088 SAS to SFF-8088 SAS cable

​

HighPoint's EXT-MS-1MMS cable utilizes industry standard SFF-8088 connectors, and is used to connect Rocket / RocketRAID Series controllers to RocketStor 6414S and RocketStor 6418S tower enclosures.

Specifications:

Connector Type
SFF-8088 to SFF-8088
Length
1M (3.3')
Data Transfer rate
6Gb/s per port

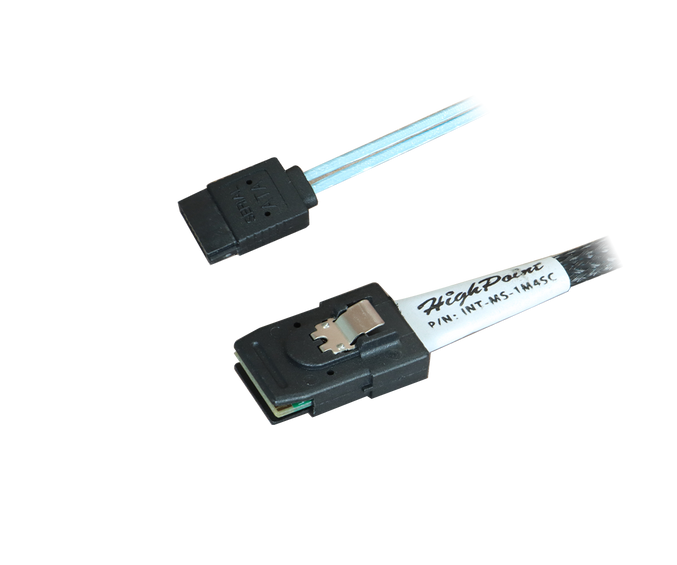

INT-MS-1M4SC

1M Internal Mini-SAS to 4x SATA

Supported Products: RocketRAID 4520SGL,

RocketRAID 2720A

Product Description:

SFF-8087 to 4x SATA Cable

​

The HighPoint INT-MS-1M4SC is an internal mini-SAS (SFF-8087) to 4x SATA device cable designed for use with HighPoint RocketRAID 4500 and 2700 series SAS/SATA controllers, and has been tested with a wide range of Enterprise and Pro-NAS class SAS/SATA hard drives and SSD's up to 16TB in capacity.

Specifications:

Connector Type
SFF-8087 to 4x SATA
Length
1M (3.3')
Data Transfer rate
6Gb/s per port

8643-4SAS-1M

1M SFF-8643 SAS to 4x SAS with Power

Supported Products:

RocketRAID 3740A, RocketRAID 3720A,
RocketRAID 3742A, RocketRAID 2840A,
RocketRAID 840A

Product Description:

1M SFF-8643 SAS to 4x SFF-8482 SAS cable

​

The 8643-4SAS-1M cable is designed for use with the RocketRAID 3700 series, RocketRAID 2840A, and RocketRAID 840A RAID controllers, and has been tested with a wide range of enterprise and Pro-NAS class SAS hard drives up to 12TB in capacity.

Specifications:

Connector Type
SFF-8643 to 4x SFF-8482
Length
1M (3.3')
Data Transfer rate
12Gb/s per port

8643-4SATA-1M

1M SFF-8643 SAS to 4x SATA cable

Supported Products:

RocketRAID 3740A, RocketRAID 2840A,
RocketRAID 840A
