HighPoint SSD6200 Series NVMe RAID Controllers are ideal for professional applications that require a bootable storage solution with host-level redundant RAID capability and native in-box driver support.



SSD6200 Series controllers were designed to maximize uptime of the host platform and ease the of integration and maintenance of NVMe RAID Storage. In addition, a wide range of solution packages are available for the professional VAR; customers can opt for either 2 and 4 dedicated M.2 device ports, integrated Host RAID 1, 0 & JBOD support, optional OOB management when outside of the OS platform, LED RAID status & I/O indication, UEFI/BIOS/CLI/GUI management interfaces, and Half-Height or Full-Height form factors.

Wide Spectrum of Supported Operating Systems

Native hardware support ensures seamless OS Installation & Upgrades



HighPoint SSD6200 series controllers enable professional solutions providers to seamlessly configure bootable, redundant RAID storage for a wide range of customer applications. Native In-Box Driver support is available all major Virtualization platforms, such as VMware, Microsoft Hyper-V and Promox, and all current versions and distributions of Windows, Linux and FreeBSD operating systems. Customers are free to update the Kernel, apply patches, or download and install scheduled updates as needed, without fear of data loss or the need for complicated procedures.


Integrated Host RAID Technology

HighPoint Industrial and Virtualization solutions feature integrated host, hardware-level RAID 0, 1 and JBOD capability. RAID arrays hosted by SSD6200 series controllers are fully transparent and will be automatically recognized by all current VM and OS platforms as available single-drives. No drivers, special procedures or software application is required.

Maximum Uptime

Though simple, RAID 1 mirroring technology remains one of the most effective way to secure a bootable storage configuration against the threat of device failure. RAID 1 creates a hidden, automated backup of the target drive; in this case, a bootable NVMe SSD. If the original should fail, the mirrored backup will immediately, and seamlessly, take the reins. This enables the host system to remain online, and continue to operate, unabated.

Simplicity Redefined

Configure arrays with the flip of a switch!

No IT background? No problem! SSD6200 controllers are ideal for users of any skill level. Customers don't need to master a complicated RAID application to configure NVMe storage.

Optimizes Production Workflows

One-Click RAID Creation enables Solution Providers and VAR’s to optimize production workflows. The onboard RAID switch completely flattens the learning curve by eliminating the need for an interface or application. You don’t even need an OS or input devices! Simply install the SSD’s, plug in the card, power on the system and toggle the switch!


RAID Switch Settings

Each controller features two hardware switches which can be used to configure one of 3 arrays modes (Mirroring, Striping and JBOD).

RAID Switch Settings.png

OOB (out-of-band) RAID Management


SSD6202A &  SSD6204A controllers provide an out-of-band management port and integrated console management interface.

OOB is ideal for field maintenance and on-site services as it allows the RAID storage to be administered in a pre OS environment. OOB is well suited to secure Data Center and Hosting applications, as it only grants access to the NVMe RAID console and configuration; it cannot interact with user data in any way.

LED Indication

The SSD6202A & SSD6204A provide LED indicators which enable administrators to quickly determine the status of the NVMe SSDs, RAID array, and PCIe host connection.

Green: Normal/Optimal

Red: Critical / Suboptimal

Blisteringly Fast

A  single SSD6200 controller can deliver over 7000MB/s of transfer performance using off-the-shelf M.2 NVMe SSD of any capacity. The massive transfer bandwidth and versatility enable solution providers to deliver custom-tailored NVMe storage for a wide range of customer applications.

Note: The performance of your NVMe configuration may vary from these results, and are influenced by the NVMe SSD model(s) in use, the system hardware environment, operating system and benchmark utility.

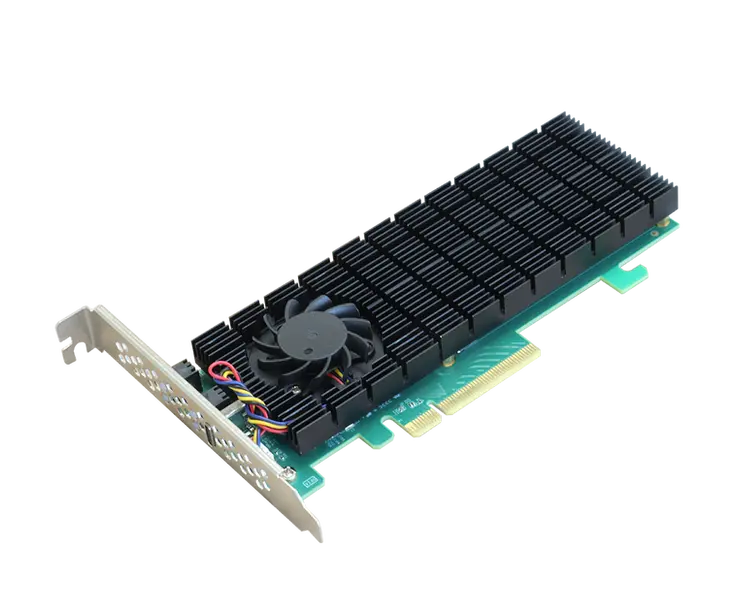

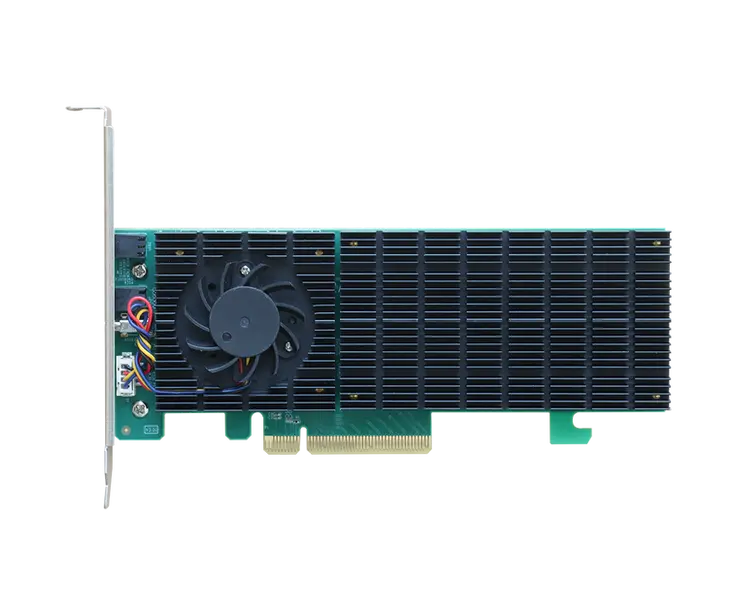

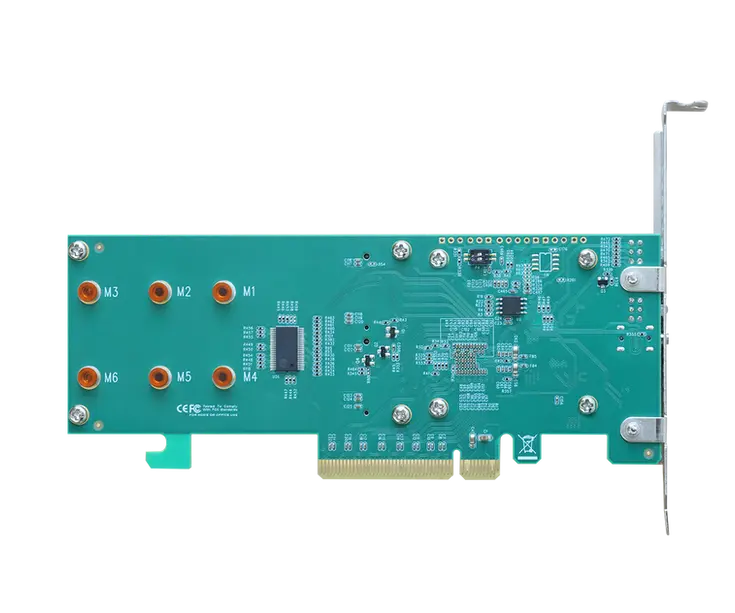

SSD6200 Series Product Family

Which Product is Right for You?

We offer different solution packages for customers, Integrators & VAR's, and OEM/ODM Solution Providers:

Individual / Corporation

Need to upgrade a company or personal Server / Workstation? Buy direct from HighPoint, or order from our certified Global Reseller and Distribution partners.

Integrators & VAR's

Are you System Integrator or VAR, and require a Rebranded Solution?
Contact Us.

OEM/ODM Solution Providers

Are you an OEM/ODM or Solutions Provider? If current SSD6200 Series controllers do not meet the needs of your project, OEM/ ODM Services are available.
Contact Us.

Learn More

Product Specifications

Product feature
SSD6202A
SSD6204A

Bus Interface

PCI-Express 3.0 x8
PCI-Express 3.0 x8

Number of Channel / Port

2x M.2 NVMe Ports
4x M.2 NVMe Ports

Port Type

2x M.2 NVMe Ports
4x M.2 NVMe Ports

Data Transfer Rate

8GT/s
8GT/s

Number of device

2x M.2 NVMe SSD
4x M.2 NVMe SSD

SSD Form Factor

2242/2260/2280 (supports single & double sided)
2242/2260/2280/22110 (supports single & double sided)

Form Factor

Low-Profile
Full-Height

Card Dimensions

6.61" W x 2.71" H x 0.87" D
7.68''W * 4.37''H * 0.98''D

Card Weight

0.77lbs
1.32lbs

Warranty

2 Years
2 Years

Supported Operating Systems

Windows 11, 10; Windows Server 2022, 2019, 2016; Microsoft Hyper-V; Only supports 64 bit operating system.
Windows 11, 10; Windows Server 2022, 2019, 2016; Microsoft Hyper-V; Only supports 64 bit operating system.
Linux (Kernel v3.10 and later)
Linux (Kernel v3.10 and later)
VMware, Proxmox, XenServer
VMware, Proxmox, XenServer

System requirements

PC Platforms: Any PC Systems or Motherboard with an industry standard PCIe x8 or x16 physical Slot.(Bifurcation is not required)
PC Platforms: Any PC Systems or Motherboard with an industry standard PCIe x8 or x16 physical Slot.(Bifurcation is not required)

Cooling System

Anodized aluminum heat sink with integrated low-noise fan
Full-length anodized aluminum heat sink

NVMe Configuration

RAID Support

RAID 0, 1,JBOD
RAID 0, 1,JBOD

TRIM RAID Support

RAID 0, 1,JBOD
RAID 0, 1,JBOD

NVMe RAID Management

Management Suites

CLI (Command Line Interface- scriptable configuration tool)
CLI (Command Line Interface- scriptable configuration tool)
WebGUI (Browser-Based management tool )
WebGUI (Browser-Based management tool )
MP-Tool RAID Management (only available by project request)
MP-Tool RAID Management (only available by project request)
UEFI Tool & UEFI HII (BIOS interface via Human Interface Infrastructure Support)
UEFI Tool & UEFI HII (BIOS interface via Human Interface Infrastructure Support)

SMTP Email Alert Notification

Yes
Yes

Alarm Buzzer

Yes
Yes

Storage Health Inspector

Yes
Yes

Automatic and configurable RAID Rebuilding Priority

Yes
Yes

Single-RAID or Multi-RAID Arrays per Controller

Yes
Yes

Advanced RAID features

Bootable RAID Array

Yes
Yes

Multiple RAID Partitions supported

Yes
Yes

Online Array Roaming

Yes
Yes

RAID Quick Initialization for fast array setup

Yes
Yes

RAID Switch

Yes
Yes

OOB Port

Yes
Yes

LED Indicators

Yes
Yes

Operating Environment

Work Temp

+5°C ~ + 55°C
+5°C ~ + 55°C

Storage Temp

-20°C ~ +80°C
-20°C ~ +80°C

Operating Voltage

PCI-e: 12V, 3.3V
PCI-e: 12V, 3.3V

Power

Typical: 3.96W
Typical: 3.84W

MTBF (Mean Time Before Failure)

920,585 Hours
920,585 Hours

Certification / Approval

CE, FCC, RoHS, REACH, WEEE
CE, FCC, RoHS, REACH, WEEE

Kit Contents

1x SSD6202A
1x SSD6204A
1x Low-Profile bracket
1x Quick Installation Guide
1x Quick Installation Guide

Software Downloads

Windows RAID Management
Download
CLI [VMware]
Download
CLI [UEFI]
Download
WebGUI (Support CLI) [Linux] (Support Secure Boot Disable)
Download
