MCIO-PCIEX16-G5

Datasheet

MCIO to PCIe Expansion Bridge Card

Key Features:

2x MCIO 8i (SFF-1016) Ports (dedicated x8 lanes per port)

1x PCIe x16 Slot

Provides up to x16 lanes of dedicated downstream bandwidth

Supports any industry standard PCIe device

Designed for use with HighPoint's PCIe Switching Adapters

HighPoint MCIO-PCIEX16-G5 Expansion Bridge Card
Bus Interface	PCIe 5.0 x16
Number of Channel / Host	1
Host Port Type	2x MCIO 8i
Device Port Type	1x PCIe 5.0 x16 slot
Data Transfer Rate	64GB/s
Number of PCIe Devices	1
Power Interface	6 pin
Dimensions	5.71" x 1.50" x 0.54"
Weight	0.09 lbs.
Supported Systems
OS	Any OS with native PCIe support
Software Secure Boot	Yes
Hardware Secure Boot	Yes
Operating Environment
Work Temp	+5°C ~ + 55°C
Storage Temp	-20°C ~ +80°C
Warranty	90 Days
Supported Adapters & Accessories
Gen5	R1628A / R1624A / R7638D
	CIO8-CI08-110 (MCIO 8i to MCIO 8i cable)
Gen4	R1528D
	8654-CIO8-110 (SFF-8654 to MCIO 8i cable)
Kit Contents
Kit Contents	1x Expansion Board
	QIG

The Ultimate PCIe Expansion Solution

The MCIO-PCIEX16-G5 Expansion bridge card can transform industry standard MCIO ports into PCIe Gen5 x16 slots. Each board can accept up to two MCIO connections and provide up to x16 lanes to the hosted PCIe device. This capability significantly boosts system connectivity, effectively overcoming the PCIe limitations of conventional motherboard design.

The x16 mechanical slot accepts any industry standard PCIe device, and can provide up to x16 dedicated lanes of Gen5 bandwidth. The compact solution is similar in size to 1U riser card, and provides multiple mounting point designed for use with standard mounting screws. This enables the bridge card to be easily integrated into industry standard desktop/tower, server or rackmount chassis.

Key Features:

2x MCIO 8i (SFF-1016) Ports (dedicated x8 lanes per port) accept industry standard MCIO 8i to MCIO 8i cabling

1x PCIe x16 Slot (up to x16 lanes for hosted PCIe devices)

Supports 1x industry standard PCIe 5.0 x8 or x16 device (backwards compatible with PCIe Gen4/Gen3)

Natively supported by Mainstream Operating systems; compatible with any OS with native PCIe support

Requires MCIO connectivity with host bifurcation (motherboard or PCIe Switch Adapter, such as the Rocket 1624A or Rocket 1628A

Flexible mounting points comply with industry standard chassis design

Designed for use with HighPoint PCIe 5.0 Switch Adapters (Rocket 1624A, Rocket 1628A, Rocket 7638D)

Unmatched Expansion Capability

The MCIO-PCIEX16-G5 can be used with either one or two MCIO connections - either from the host motherboard, or an adapter card. Each slot provides up to x8 lanes of transfer bandwidth:

A single-port configuration will support up to one PCIe x8 device
Dual-port configurations can support a single PCIe x16 Device

Designed for use with HighPoint PCIe Switch Adapters

Rocket PCIe Gen5 Switch Adapters are an ideal match for the MCIO-PCIEX16-G5. Proven PCIe Switching architecture provides x48 lanes of internal bandwidth, ensuring each MCIO port allocates x8 lanes of dedicated downstream bandwidth to the bridge card. This also enables each adapter to support multiple bridges; 1 per MCIO 8i port:

Rocket 7638D: 2x MCIO 8i ports - up to 2x MCIO-PCIEX16-G5 Bridge Cards

Rocket 1624A: 2x MCIO 8i ports - up to 2x MCIO-PCIEX16-G5 Bridge Cards

Rocket 1628A: 4x MCIO 8i ports - up to 4x MCIO-PCIEX16-G5 Bridge Cards

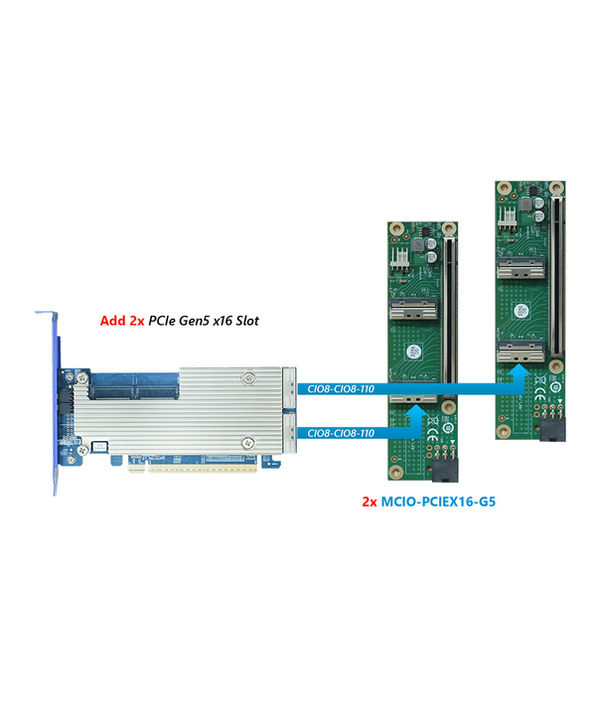

Single x16 Slot Expansion Solution

Dual x8 Slot Expansion Solution

Supports any Industry Standard PCIe Device:

HighPoint NVMe RAID Adapters: Engineered for Scalable Storage Infrastructures

MCIO-PCIEX16-G5，PCIe Expansion Bridge Card

Supported Adapters

Product	PCIe	Ports	# of Devices	Cabling	SSD FF
Rocket 1624A	PCIe 5.0 x16	2x MCIO 8x	Up to 16	Yes	Direct Connect U.2/U.3; Backplane Connection: ESDFF devices such as U.2/U.3/E1.S
Rocket 7638D	PCIe 5.0 x16	1 x CDFP; 2 x MCIO 8x	Up to 16x NVMe SSDs / 1x eGPU	Yes (MCIO ports)	Direct Connect U.2/U.3/E3.S; Backplane Connection: ESDFF devices such as U.2/U.3/E1.S/E3.S
Rocket 1628A	PCIe 5.0 x16	4x MCIO 8x	Up to 32	Yes	Direct Connect U.2/U.3/E3.S; Backplane Connection: ESDFF devices such as U.2/U.3/E1.S/E3.S
