SSD7505

PCIe 4.0 x16 4-Port M.2 NVMe RAID HBA

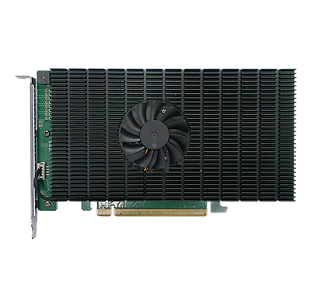

The SSD7505 is the industry's fastest and most versatile 4-Channel PCIe Gen4 NVMe RAID AIC. The compact single-width controller card can be easily integrated into industry standard computing platform with a PCIe 4.0 x16 slot, and supports up to four 2242, 2260, 2280 or 22110 form-factor M.2 NVMe SSDs of any capacity. The SSD7505’s state-of-the-art Performance-Focused PCIe Switching Architecture ensures each M.2 port operates at peak performance, and enables the AIC to deliver sustained transfer speeds up to 25,000MB/s. Powered by HighPoint advanced Gen4 NVMe RAID stack, SSD7505 AICs can support one or more RAID 0, 1 or 10 configurations for applications that require support for high-speed storage with boot capability.

Key Features

Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solution
Performance-Focused PCIe Switching Architecture
4x Dedicated M.2 NVMe Device Channels
Supports 2242/2260/2280/22110 M.2 Form Factors
Advanced Gen4 Hyper Cooling Solution
Supports RAID 0, 1, 10 and Single-Disk Configurations
Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution
Bootable RAID Support for Windows and Linux

Buy Now

Software and Documents

Software & Drivers (RAID Management & Driver, UEFI Tool)

Product Documents (RAID Management & Driver Guide, Datasheet, QIG)

Compatibility Guideline (System, Motherboard,

Drive

)

NOTE: Please email to GeneralSales@highpoint-tech.com for more information about upgrading to latest software and documents.

Specifications

Product feature
Bus Interface	PCI-Express 4.0 x16
Number of Channel / Port	4x M.2 NVMe port (Dedicated PCIe 4.0 x4 per port)
Port Type	4x M.2 NVMe
Data Transfer Rate	16GT/s
Number of device	4x M.2 NVMe SSD
SSD Form Factor	2242/2260/2280/22110 (supports single & double sided)
External Power Support	N/A
Form Factor	Full-Height
Card Dimensions	7.68"(W) x 4.37"(H) x 0.85"(D)
Card Weight	1.32 lbs.
Warranty	2 Years
Supported Operating Systems
Windows	Windows 11 ,10; Windows Server 2022, 2019, 2016; Microsoft Hyper-V; Only supports 64 bit operating system.
Linux	RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux(Linux kernel 3.10 and later) Only supports 64 bit operating system.
macOS	macOS 10.13 ~ macOS 14.x
System Requirements
Mac Platforms:	• Apple Mac Pro Systems: 2012 and later Mac Pro systems; MacPro5,1; MacPro7,1 (2019); Mac14,8 (2023) Note: PCIe 4.0 required for maximum performance
	• Intel & Apple M1 & Apple M2 Platform compatible
	• Thunderbolt™ 3 Connectivity via Thunderbolt™ Expansion chassis: RocketStor6661A
PC Platforms:	Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required). Note: PCIe 4.0 required for maximum performance.
	Thunderbolt™ 3 Connectivity (requires a PC platform with a Thunderbolt 3 port) & Thunderbolt™ Expansion chassis: RocketStor6661A
Secure Boot(PC platforms)	Windows： Support Secure Boot Disable and Enable(Please download the UEFI driver corresponding to Secure Boot on the software download page)
	Linux：Support Secure Boot disable
Cooling System	Full-Length Anodized Aluminum Heat sink with built-in Low-Noise fan
Fan Control	Yes (Windows, Mac)
NVMe Configurations
RAID Support	Single, RAID 0, 1, 10
TRIM RAID Support	Single, RAID 0, 1, 10
Storage Mode - NVMe
Data RAID (Non-Bootable)	Windows,Linux,Mac (Linux Driver can be installed via internet/network connection)
Boot RAID	Windows: Windows10, 11 Windows Server 2016,2019,2022
	kernel3.10 and later (Linux Driver can be installed via internet/network connection)
	Mac：Bootable using one (non-RAID) M.2 SSD as the boot drive. Only supports up to macOS 10.15.
NVMe RAID Management
Management Suites	WebGUI (Browser-Based management tool )
	CLI (Command Line Interface- scriptable configuration tool)
	API package
	UEFI Tool & UEFI HII (BIOS interface via Human Interface Infrastructure Support)
SMTP Email Alert Notification	Yes
Alarm Buzzer	Yes
Storage Health Inspector	Yes
NVMe SMART status	Yes
Automatic and configurable RAID Rebuilding Priority	Yes
Auto resume incomplete rebuilding after power on or reboot system	Yes
Single-RAID or Multi-RAID Arrays per Controller	Yes
Cross-Sync RAID Solution Across Controllers	Yes (Windows,Linux,Mac)
Advanced RAID features
Flash ROM for Upgradeable UEFI	Yes
Bootable RAID Array	Yes
Multiple RAID Partitions supported	Yes
Online Array Roaming	Yes
RAID Quick Initialization for fast array setup	Yes
Global Hot Spare Disk support	Yes
Operating Environment
Work Temp	+5°C ~ + 55°C
Storage Temp	-20°C ~ +80°C
Operating Voltage	PCI-e: 12V, 3.3V
Power	Typical: 16.44W
MTBF (Mean Time Before Failure)	920,585 Hours
Certification / Approval	CE, FCC, RoHS, REACH, WEEE
Kit Contents	1x SSD7505
	1x Quick Installation Guide
