SSD7749M

8x 22110 M.2 to PCIe 4.0 x16 NVMe RAID Controller

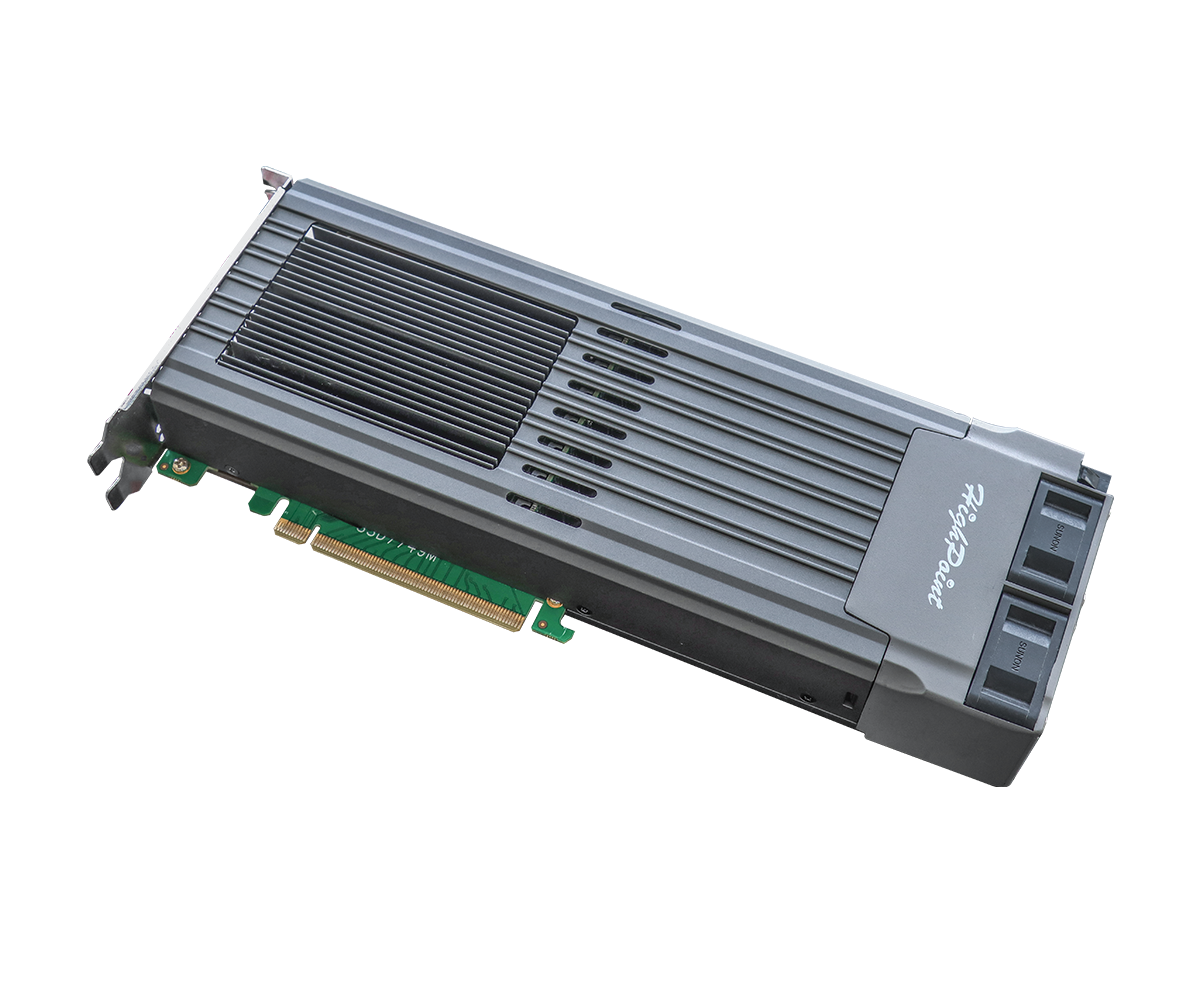

HighPoint’s revolutionary SSD7749M M.2 NVMe RAID AIC was designed for demanding industrial and media applications that require a compact high-density RAID storage solution with blistering performance and datacenter class reliability. With a hardware footprint similar to that of a modern dual-width PCIe graphics adapter, the SSD7749M can directly host up to eight 22110 form-factor DC-class M.2 NVMe SSDs and deliver up to 28,000MB/s of transfer bandwidth. The unique dual-width AIC architecture incorporates a tool-less SSD loading system and robust precision engineered cooling system designed to mitigate the threat of thermal throttling to ensure each hosted SSD performs optimally under the most grueling workloads.

Key Features

  • Compact, High-Density Storage Solution: Directly hosts up to 8x 22110 M.2 Form factor SSDs of any capacity

  • Dedicated PCIe 4.0 x16 host interface

  • Performance-Focused PCIe Switching Architecture

  • Precision Engineered Dual-Wide Cooling Solution Prevents Thermal Throttling

  • Supports RAID 0, 1, 10 and Single-Disk Configurations

  • Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution

  • Compatible with macOS and industry Linux and Windows OS platforms

Specifications

Product feature

Bus Interface

PCI-Express 4.0 x16

Number of Channel / Port

8x M.2 NVMe port (Dedicated PCIe 4.0 x4 per port)

Port Type

8x M.2 NVMe

Data Transfer Rate

16 GT/s

Number of device

8x M.2 NVMe SSD

SSD Form Factor

2242/2260/2280/22110

External Power Support

Yes (Use 6pin PCIe Power Connector)

Form Factor

Full height

Dimensions

11.18''W x 4.92''H x 1.53''D

Weight

2.65 lbs

Warranty

2 Years

Self-encrypted drive (SED)

Yes (Windows,Linux)

Supported Operating Systems

Windows

Windows 11, 10 Windows Server 2022, 2019, 2016 Microsoft Hyper-V Only supports 64 bit operating system.

Linux

RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux(Linux kernel 3.10 and later) Only supports 64 bit operating system.

macOS

macOS 10.13 ~ macOS 14.x

System Requirements

Mac Platforms: • Apple Mac Pro Systems: 2012 and later Mac Pro systems; MacPro5,1; MacPro7,1 (2019); Mac14,8 (2023) • Intel & Apple M1 & Apple M2 Platform compatible
PC Platforms: • Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required)

Secure Boot(PC platforms)

Windows: Support Secure Boot enable and disable Linux:Support Secure Boot disable

Cooling System

Aluminum casing with integrated thermal pad & cooling fan

Fan Control

Yes

NVMe Configuration

RAID Support

Single, RAID 0, 1, 10

TRIM RAID Support

Single, RAID 0, 1, 10

Storage Mode-NVMe

Data RAID(Non-Bootable)

Windows, Linux, Mac (Linux Driver can be installed via internet/network connection)

Boot RAID

Windows: Windows 10, Windows server 2016 and later
Linux: kernel 3.10 and later (Linux Driver can be installed via internet/network connection)
Mac: Not support

NVMe RAID Management

Management Suites

WebGUI (Browser-Based management tool )
CLI (Command Line Interface- scriptable configuration tool)
API package
UEFI tool

SMTP Email Alert Notification

Yes

Alarm Buzzer

Yes

Storage Health Inspector

Yes

NVMe SMART status

Yes

Automatic and configurable RAID Rebuilding Priority

Yes

Auto resume incomplete rebuilding after power on or reboot system

Yes

Single-RAID or Multi-RAID Arrays per Controller

Yes

Cross-Sync RAID Solution Across Controllers

Yes (Windows, Linux, Mac)

LED status

Green flashing: SSD I/O perform. Solid red: Hard disk failure status.

Advanced RAID features

Flash ROM for Upgradeable UEFI

Yes

Bootable RAID Array

Yes

Multiple RAID Partitions supported

Yes

Online Array Roaming

Yes

RAID Quick Initialization for fast array setup

Yes

Global Hot Spare Disk support

Yes

Operating Environment

Work Temp

+5°C ~ + 55°C

Storage Temp

-20°C ~ +80°C

Operating Voltage

PCI-e: 12V, 3.3V

Power

Typical: 17.28W

MTBF (Mean Time Before Failure)

920,585 Hours

Certification / Approval

CE, FCC, RoHS, REACH, WEEE

Kit Contents

Kit Contents

1x SSD7749M
1x Quick Installation Guide
