RocketAIC 7505HW NVMe Drive


PCIe Gen4 x16 NVMe RAID Drive – 8TB of Storage Capacity – Up to 27GB/s of Transfer performance!

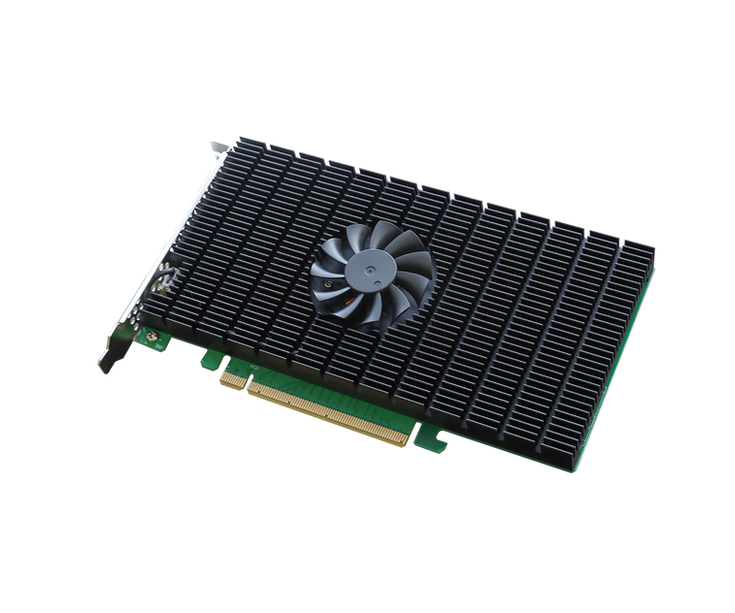

RocketAIC 7505H Front Side



RocketAIC 7505HW series NVMe Drives deliver unbeatable storage performance and reliability in a compact, easy to install package that is ready for use right out of the box! The RocketAIC 7505HW (RA7505HW) includes four of Samsung’s blazing-fast 980PRO 2TB M.2 SSDs, pre-configured to deliver maximum performance and capacity. This combination delivers up to 8TB of storage at speeds up to 27GB/s.

Broadcom Inside!

HighPoint RocketAIC NVMe drives incorporate Broadcom PCIe switch chipsets, to optimize signal integrity, reduce latency and maximize transfer throughput. The Switch ICs are integrated directly into the AIC’s controller hardware, and provide an abundance of electrical lanes: 48 for the RocketAIC 7505HW.

The highly flexible, performance-focused hardware architecture is unique to our NVMe solutions and ensures bandwidth is never wasted. The RocketAIC 7505HW allocates a dedicated x16 lanes of Upstream bandwidth, and x4 lanes of downstream bandwidth to each device port and Samsung 980PRO. This combination delivers a guaranteed 27GB/s of transfer performance using just four SSDs!

Broadcom Inside_RocketAIC 7505H

Equipped with Samsung’s Class-Leading 980PRO M.2 SSDs

RocketAIC 7505HW series NVMe drives leverage our industry leading NVMe hardware architecture and Samsung’s proven 980PRO series M.2 SSDs, to deliver client class - leading I/O performance and reliability.

Up to 27000MBs Read Speeds and 18000MBs Write Speeds_RocketAIC
 7505H

RocketAIC 7505HW drives deliver a potent combination of blazing transfer speeds and high-endurance reliability, and are equally suited for professional workflows and personal high-performance computing applications.

Workstation setup behind the RocketAIC 7505H

Your Choice: Maximum Transfer Speed & Capacity, Maximum Data Security, or the Best of Worlds!

RocketAIC NVMe Drives are capable of supporting bootable and data-only storage configurations, and were designed to accommodate a wide-range of high-performance workflows, including AI learning and AV systems, content creation and post-production platforms, and high-speed data ingestion and media capture solutions.

RocketAIC drives are shipped pre-configured to maximize performance and capacity, but can be easily reconfigured using our quick and intuitive management suite.

Striping - This mode delivers Maximum Performance and capacity by linking multiple NVMe SSDs together to act as a single storage unit.

Mirroring - This mode creates a hidden duplicate of the target SSD, and is ideal for applications that require an extra layer of data security, including bootable volumes.

Security & Speed –This mode offers the best of both worlds. Two mirrored arrays are striped together to maximize performance with a layer of data redundancy.

Striping Maximize Transfer Speed & Capacity
PCIe Gen4 Hyper Cooling Solution_RocketAIC 7505H

PCIe-Gen4 Hyper-Cooling Solution

In order to optimize NVMe storage performance, you will need a reliable way to keep temperatures in check. HighPoint RocketAIC NVMe drives were designed to mitigate the threat of thermal throttling to excel in high-stress computing environments.

The RocketAIC 7505HW’s proven PCIe Gen4 NVMe Hyper-Cooling solution was engineered to perform optimally in demanding workflows while generating minimal noise. The system leverages a full-length anodized aluminum heatsink with a powerful low-decibel cooling fan and high-efficiency thermal padding to rapidly transfers waste heat away from sensitive hardware and ensure the Samsung 980PRO SSDs always perform optimally, even under maximum load.

Quick & Intuitive Management Suite

Though RocketAIC drives are designed to work right out of the box, customers are free to install HighPoint’s intuitive WebGUI and CLI management software suite. The WebGUI includes our SHI solution (Storage Health Inspector), which provides simple and quick real-time temperature monitoring and endurance tracking.

The WebGUI is a graphical user interface designed to work with all modern Web Browsers. Quick, and easily mastered, the WebGUI can be used to manage, configure and monitor every aspect of your RocketAIC NVMe drive with a few simple clicks. Customers with advanced administrative skills may prefer the HighPoint CLI (Command Line Interface). For many Linux veterans, it is the tool of choice, as it runs from a terminal window, is universal for any distribution, and does not require a graphical OS.

Quick & Intuitive Management Suite_RocketAIC 7505H
Cross-Sync drives double performance and capacity_RocketAIC 7505H

Double Your Performance and Capacity Potential!

Need more performance and storage capacity? Need to maximize transfer throughput for a specific application or workflow? HighPoint has you covered. RocketAIC NVMe expansion drives are fully compatible with our Cross-Sync RAID technology and HPT-Optimizer solution. Customers can link multiple RocketAIC 7505HW drives and leverage up to 32 lanes of upstream bandwidth to deliver an astounding 54GB/s+ of sustained transfer performance while doubling storage capacity to 16TB! HPT-Optimize can maximize real-world transfer throughput by directly linking each RocketAIC drive to their corresponding CPU Core and target application to minimize latency.

Learn More about HighPoint Performance Optimization Technology

Spe

Specifications

Product

Capacity

RA7505HW-A04T0-03: 4TB
RA7505HW-A08T0-00: 8TB

Performance (PC MB: ASUS WS WRX80E)

RA7505HW-A04T0-03: Sequential Read (MB/s): 26216; Sequential Write (MB/s): 19423
RA7505HW-A08T0-00: Sequential Read (MB/s): 27125; Sequential Write (MB/s): 18771

RAID Support

RAID 0, 1, 10, Single-Disk

TRIM RAID Support

RAID 0, 1, 10, Single-Disk

Number of Channel / Port

4

Port Type

M.2

Data Transfer Rate

16GT/s

Number of devices

4

SSD Form Factor

2280

Card Dimensions

7.68"(W) x 4.37"(H) x 0.85"(D)

Card Weight

1.40 lbs.

Warranty - Learn More

3 Years
RA7505HW-A08T0-00: TBW(Total SSDs): 4800TB; TBW(Single SSD): 1200TB
RA7505HW-A04T0-03: TBW(Total SSDs): 2400TB; TBW(Single SSD): 600TB

Cooling System

PCIe Gen4 Hyper-Cooling Solution

Self-encrypted drive (SED)

Yes

Fan Control

Yes (Windows)

System Support

OS

Windows 11, 10 ; Windows Server 2022, 2019, 2016 ; Microsoft Hyper-V
RHEL, Debian, Ubuntu, Fedora, Proxmox, Rocky Linux (Linux kernel 3.10 and later)

System Requirements

PC Platforms: Refer to the compatibility list (Bifurcation is not required)

Secure Boot

Windows: Yes (need UEFI driver corresponding to Secure Boot); Linux: No

Storage Mode - NVMe

Data RAID (Non-Bootable)

Windows, Linux (Linux Driver can be installed via internet/network connection)

Boot RAID

Windows 11, 10 ; Windows Server 2022, 2019, 2016; Microsoft Hyper-V; RHEL, Debian, Ubuntu, Fedora, Proxmox, Rocky Linux (Linux kernel 3.10 & later) (Linux Driver can be installed via internet/network connection)

NVMe Storage Management

Management Suites

WebGUI (Browser-Based management tool )
CLI (Command Line Interface- scriptable configuration tool)
API package
UEFI Tool & UEFI HII (BIOS interface via Human Interface Infrastructure Support)

SMTP Email Alert Notification

Yes

Alarm Buzzer

Yes

Storage Health Inspector

Yes

NVMe SMART status

Yes

Automatic and configurable RAID Rebuilding Priority

Yes

Auto resume incomplete rebuilding after power on or reboot system

Yes

Single-RAID or Multi-RAID Arrays per Controller

Yes

Cross-Sync RAID Solution Across Controllers

Yes

Advanced RAID features

Online Array Roaming

Yes

RAID Quick Initialization for fast array setup

Yes

Global Hot Spare Disk support

Yes

Flash ROM for Upgradeable UEFI

Yes

Bootable RAID Array

Yes

Multiple RAID Partitions supported

Yes

Operating Environment

Work Temp

+5°C ~ + 55°C

Storage Temp

-20°C ~ +80°C

Operating Voltage

PCI-e: 12V, 3.3V

Power

RA7505HW-A04T0-03: 52.04W
RA7505HW-A08T0-00: 45.24W

MTBF (Mean Time Before Failure)

1.5 million hours

Certification / Approval

CE, FCC, RoHS, REACH, WEEE

Kit Contents

RA7505HW-A04T0-03

1x RA7505HW-A04T0-03
1x Quick Installation Guide

RA7505HW-A08T0-00

1x RA7505HW-A08T0-00
1x Quick Installation Guide

Resources

Downloads

UEFI Software Package

UEFI Tool (Secure Boot is not supported)

Download

UEFI Tool (Secure Boot is supported)

Download

Windows Software Package

Windows RAID Management

Download

Windows Driver

Download

Linux Software Package (Secure Boot is not supported)

Linux RAID Management

Download

Data RAID - Linux Open Source Driver

Download

Documentation

Product Specifications

Datasheet

Download

Compatibility Document

Compatibility List

Download

User Guides

Quick Installation Guide

Download

RAID Management User Guide

Download

Data RAID - Driver & RAID Management Installation Guide (Windows)

Download

Data RAID - Driver & RAID Management Installation Guide (Linux)

Download

Boot RAID - Driver Installation Guide (Windows)

Download

Boot RAID - Binary Driver Installation Guide (Red Hat Enterprise Linux)

Download

Boot RAID - Binary Driver Installation Guide (Ubuntu Linux)

Download

HPT-Accelerate Software User Guide (Linux)

Download

Boot RAID - Binary Driver Installation Guide (Debian Linux)

Download

UEFI ROM Update Guide

Download

RAID Controller/Enclosure Port Guide

Download

HighPoint SafeStorage User Manual

Download

User Guides (Dell Precision Workstation)

Dell Precision 7960 Tower with NVMe RAID AIC User Guide

Download

Dell PowerEdge R730 Server with NVMe RAID AIC User Guide

Download
