Reimagining PCIe Expansion: How HighPoint’s Rocket1600 Adapter Delivers Intelligent, Switch-Level Lane Bifurcation
- Jun 16
- 4 min read
In the race to scale computing power for AI/ML, HPC, and data-intensive workloads, one architectural bottleneck continues to constrain even the most advanced systems: PCIe lane availability.While traditional CPU-based lane bifurcation offers limited expansion, HighPoint Technologies has engineered a superior, scalable solution —Rocket1600 Series PCIe Gen5 Switch Adapters.
By directly integrating Broadcom’s PEX89048 48-lane PCIe Gen5 switch IC, Rocket1600 series adapters can provide independent, hardware-managed lane bifurcation — delivering flexibility, system stability, and performance consistency for high-density GPU and NVMe deployments.
Why the HighPoint’s gen5 PCIe Switch Adapters Support Lane Bifurcation
These adapters don’t need to rely on the host CPU or motherboard for lane management. The integrated Broadcom PEX89048 Switch IC provides each Rocket 1600 card with 48-internal lanes, creating an intelligent, self-contained PCIe fabric directly within the adapter hardware.
Standard (Host) Bifurcation: The Old Model
In a traditional platform, PCIe lane bifurcation is controlled by the host CPU’s Root Complex (RC).
· A single PCIe x16 slot can be electrically split into multiple logical links (e.g., x4/x4/x4/x4).
· This process depends on the CPU’s lane allocation, motherboard routing, and BIOS configuration.
· It is manual, limited by CPU lane count, and subject to compatibility constraints across platforms.
This model works for basic storage or low-density expansion projects but falls short in AI and HPC environments, which demand consistent high-speed transfers, and multi-device connectivity.

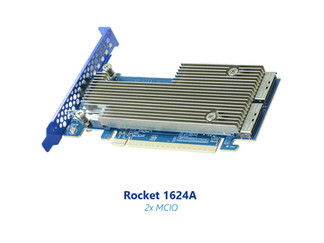

Switch-Level Bifurcation: The Rocket1600 Advantage
HighPoint’s Rocket1600 Series is a major game changer:
The Broadcom PEX89048 switch accepts a single Gen5 x16 uplink from the host, then uses its internal 48-lane PCIe fabric to create multiple, configurable downstream connections — completely independent of CPU or BIOS control.
· Upstream Allocation: 16 lanes dedicated to host connectivity.
· Downstream Allocation: 32 internal lanes for connected devices (GPUs, NVMe drives, etc.).
· Dynamic Configuration: Lanes can be divided into various link widths — e.g., 8 × x4, 4 × x8, or 32 × x1 — depending on device topology.
In short, the switch itself serves as a mini Root Complex, intelligently managing device enumeration, link training, and data routing within the adapter.
How the Rocket1600 Adapter Executes Lane Bifurcation
This advanced capability is powered by Broadcom’s Synthetic Hierarchy architecture, which simplifies the downstream topology and optimizes how the host system perceives the adapter.
Feature | Mechanism | Technical Benefit |
Synthetic Hierarchy | The switch presents a unified, simplified topology to the host OS. | Zero Host Resource Load: The OS only sees the Rocket1600 adapter — not each attached NVMe drive or GPU — reducing configuration overhead. |
Self-Bifurcation | The PEX89048 handles all link training and lane mapping internally. | No BIOS Dependency: Fully autonomous operation, independent of host motherboard settings. |
Configurable Downstream Ports | Lanes can be distributed programmatically via firmware or management utilities. | Flexible Expansion: Allocate full x16 to a GPU, or distribute lanes to NVMe drives (e.g., x4/x4/x4/x4). |
Low Latency Design | Cut-through packet switching adds less than 115 nanoseconds of latency. | Near-Direct Performance: Maintains full Gen5 bandwidth with negligible overhead. |
This self-contained bifurcation architecture allows Rocket 1600 series adapters to deliver both flexibility and simplicity — turning any standard PCIe slot into a multi-device expansion backbone without BIOS tuning or host resource consumption.
Benefits for Industrial and Professional Applications
The Rocket 1600’s switch-managed bifurcation architecture directly addresses two fundamental challenges across data-driven industries:
limited internal expansion and thermal management constraints.
Maximized Performance and Efficiency
Industry Vertical | Pain Point | Benefit of Switch-Managed Bifurcation |
HPC & AI/ML | Limited GPU density and internal thermal throttling | Provides a full Gen5 x16 uplink to external GPU enclosures (e.g., RocketStor 8631CW) and petabyte-scale NVMe storage, decoupling high-heat components for sustained compute power. |
Media & Entertainment (M&E) | Lack of PCIe slots for multiple GPUs and NVMe arrays in high-end workstations | Enables one-slot connection to an external GPU + NVMe array, consolidating resources and simplifying 8K+ video rendering and editing workflows. |
Big Data & Analytics | Limited number of NVMe drives addressable by host OS | Allows up to 32 devices via x1 or x4 links through dual x8 MCIO ports, dramatically increasing local dataset accessibility and I/O parallelism. |
Host Resource Efficiency and System Stability
The Rocket 1600 Series’ PCIe Switch Architecture ensures system integrity and performance isolation by offloading lane management to the Switch IC, delivering four critical operational guarantees:
1. Zero CPU Lane Consumption:The host dedicates only one x16 connection to the Rocket1600. All other downstream devices draw from the switch’s internal lanes, preserving CPU PCIe resources for other tasks.
2. No BIOS Configuration Required:The adapter operates independently of motherboard bifurcation settings, enabling true plug-and-play deployment across server and workstation platforms.
3. OS Resource Isolation:The host OS enumerates only the Rocket1600 adapter, not every connected device, preventing resource exhaustion and maintaining stable boot performance.
4. Low-Latency Data Flow:The internal switch fabric supports peer-to-peer GPU ↔ NVMe communication, bypassing CPU memory and I/O routing for maximum throughput in GPU Direct Storage workflows.
The Real-World Impact: Redefining PCIe Scalability
HighPoint’s Rocket 1600 Series PCIe Gen5 Switch Adapters enable IT architects to break free from host CPU limitations and unleash scalable, GPU-accelerated performance without sacrificing stability or simplicity.
By combining Broadcom’s advanced PEX89048 switching and HighPoint’s intelligent bifurcation management, it transforms a single PCIe slot into a self-contained, configurable high-speed interconnect, enabling unprecedented expansion density and workload efficiency.
Learn More:
