Rocket 1180

PCIe 3.0 x16 8-Port U.2 NVMe HBA


Fast & Verstaile 8-Channel NVMe Connectivity Solution for PCIe Gen3 Platforms

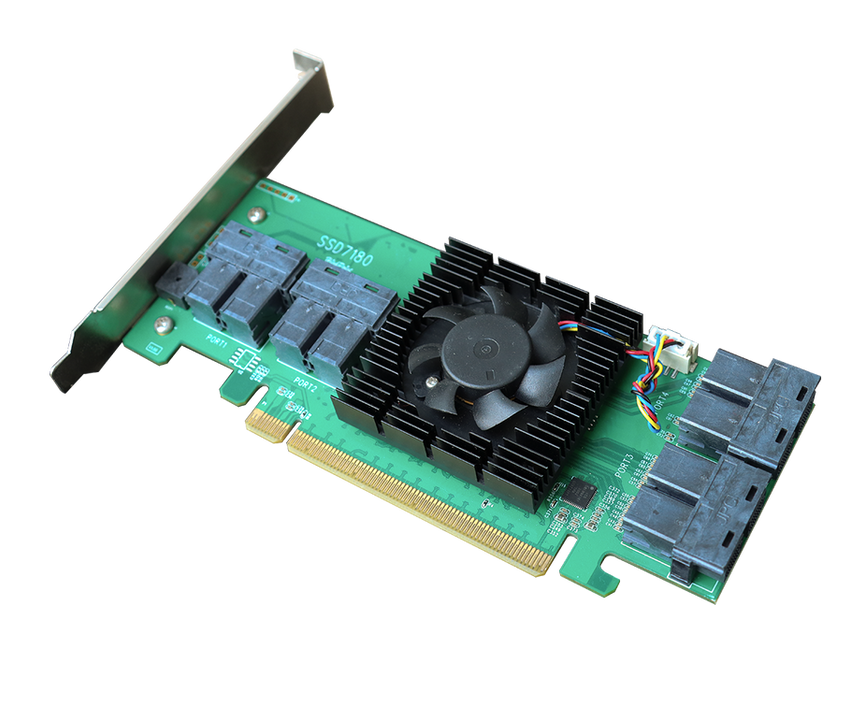

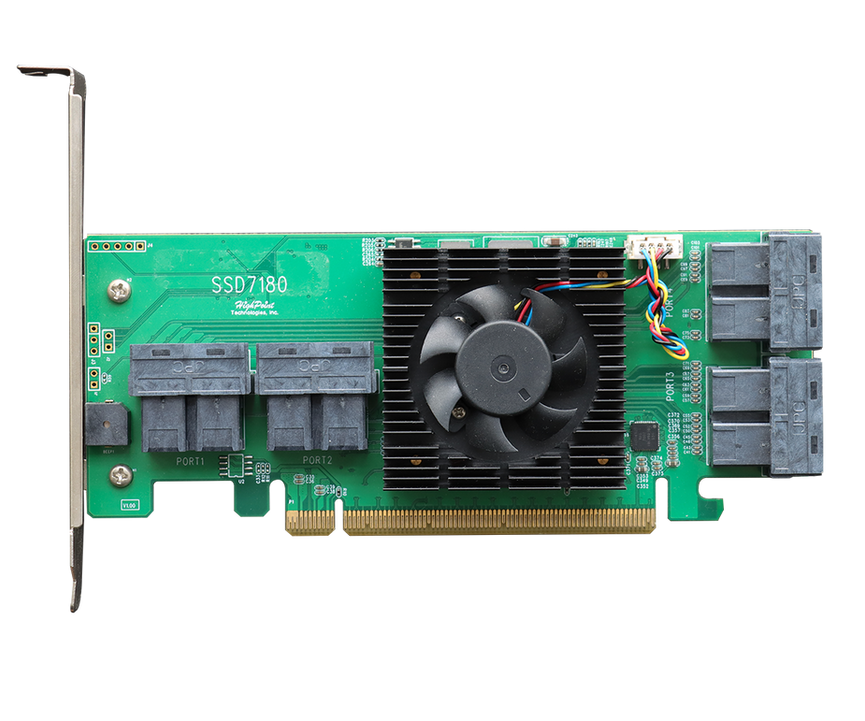

Rocket1180 Front Side


R1000 Series NVMe HBAs are fully independent, stand-alone NVMe storage solutions for PCIe Gen3 platforms; they are not tied to a specific motherboard, chipset or operating system, can be easily integrated into any motherboard or server/workstation platform with a free PCIe 3.0/4.0 x16 or x8 slot, and are capable of supporting off-the-shelf NVMe SSDs of any capacity.

The Rocket 1180 is a versatile, high-performance NVMe connectivity HBA for PCIe 3.0 host platforms. The eight independent device ports can support U.2/U.3 or M.2 NVMe SSDs via a range of cabling solutions.


Performance-Focused NVMe Hardware Architecture

HighPoint NVMe connectivity HBAs benefit from decades of engineering and design expertise, and are capable of saturating x16 lanes of PCIe Gen4 or Gen3 host bandwidth. The highly flexible, performance-focused NVMe hardware architecture leverages intelligent PCIe switch technology to allocate up to x4 lanes to each device port, as needed.





Native, In-Box NVMe Device Driver Support

HighPoint NVMe HBA’s were designed with simplicity in mind. Just install the SSDs and plug in the card!

Rocket 1000 Series HBA’s are natively supported by all major Windows and macOS operating systems, and current distributions of Linux. You won’t need to juggle a series of device drivers, install a complex software suite, or master a specialized management interface. Your NVMe SSDs will be automatically recognized, and can be prepped and mounted using the operating system’s standard tool set.


Rocket1180 Performance Focused Hardware Achitecture
Internal U.2 Connectivity_Rocket 1180


Versatile Cabling Solutions

The Rocket 1180 works with a variety of industry standard connectors – not just SFF-8639, which is employed directly by U.2 media. We offer a selection of cabling accessories capable of supporting a wide range of storage configurations, including SFF-8643 connections and SFF-8611 Oculink backplanes. This allows the Rocket 1180 to support any industry standard U.2 or M.2 NVMe SSD.

Spe

Specifications

Product feature

Bus Interface

PCI-Express 3.0 x16

Number of Channel / Port

8x Intenal U.2 NVMe port(Dedicated PCIe 3.0 x4 per port)

Data Transfer Rate

8 GT/s

Number of device

8x U.2/U.3 NVMe SSD

SSD Form Factor

2.5" U.2

Form Factor

Low-Profile

Card Dimensions

6.55" (W) x 2.71"(H) x 0.83" (D)

Card Weight

0.93 lbs.

Warranty

1 Year

Supported Operating Systems

OS

Microsoft Windows; VMware vSphere/ESXi; Red Hat Enterprise Linux; SuSE Linux; Ubuntu Linux; Citrix XenServer; CentOS Linux; Debian Linux; Oracle Enterprise Linux; Fedora; FreeBSD; (All operating systems with native NVMe driver can be supported.)

System Requirements

Mac Platforms:

n/a

PC Platforms:

• Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required)

Cooling System

Anodized aluminum heatsink with a built-in Low-Noise fan

Operating Environment

Work Temp

+5°C ~ + 55°C

Storage Temp

-20°C ~ +80°C

Operating Voltage

PCI-e: 12V, 3.3V

Power

Typical: 7.13W

MTBF (Mean Time Before Failure)

920,585 Hours

Certification / Approval

CE, FCC, RoHS, REACH, WEEE

Kit Contents

1x R1180
1x Quick Installation Guide
1x Low-Profile bracket
