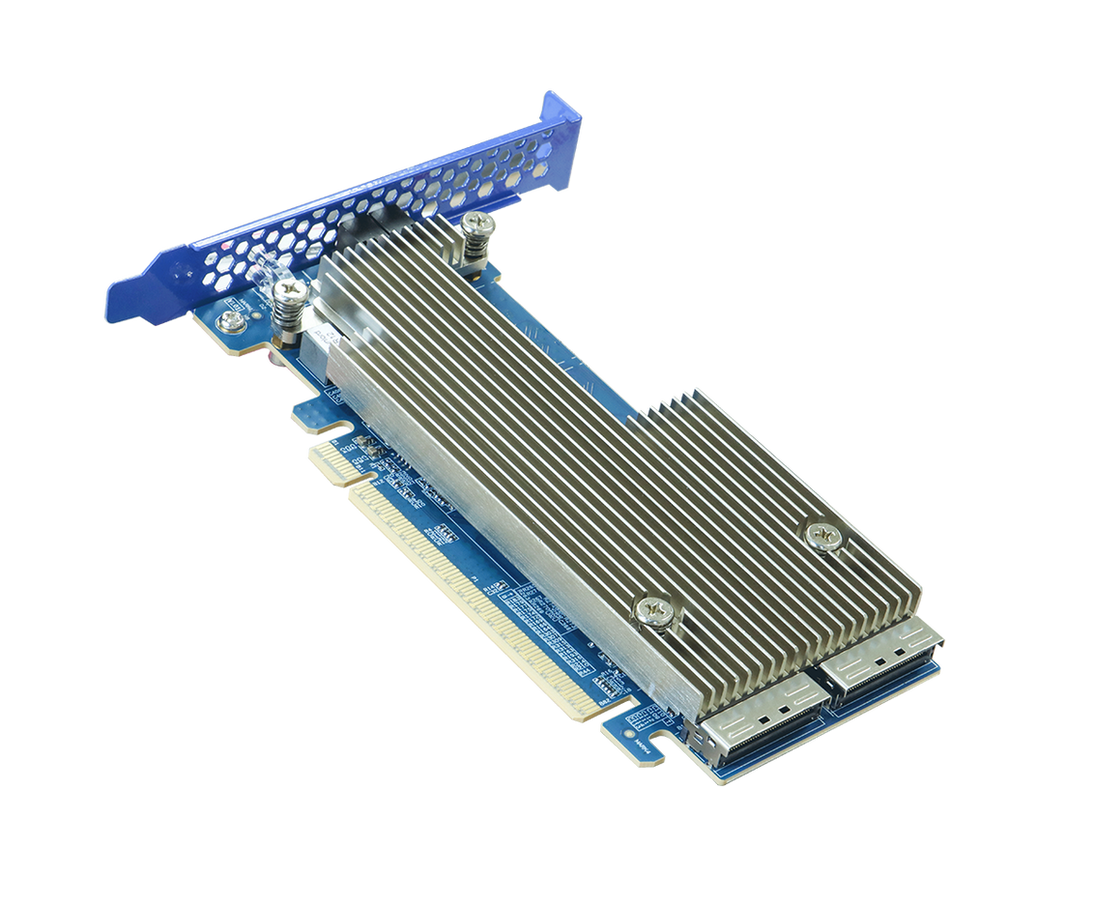

Rocket 7624A – PCIe 5.0 x16 NVMe RAID Adapter

The Rocket 7624A PCIe Gen5 x16 NVMe PRro/RAID Adapter is engineered for professional applications that demand both extreme bandwidth and flexible scalability. The dual MCIO (SFF-TA-1016) ports each provide a dedicated PCIe Gen 5 x8 link, delivering high-speed, hot-pluggable connectivity for up to four U.2/U.3 or E3.S NVMe SSDs.

Building on the Rocket 7628A/7628U’s proven hardware architecture, the Rocket 7624A delivers uncompromised PCIe Gen 5 x16 bandwidth and professional-grade NVMe RAID capabilities at an unprecedented sub-$1,000 price point — making it the industry’s Most Cost-Performance Enterprise-Grade PCIe Gen 5 x16 NVMe RAID adapter. By democratizing access to Gen 5 NVMe connectivity, the Rocket 7624A enables customers to integrate scalable, high-performance RAID storage into workstations, edge servers, and data-intensive applications that would normally be held back by budgetary limitations.

Key Features:

• 2x MCIO 8i (SFF-1016) Ports (x8 dedicated lanes per port)

• No. of Devices: Up to 4 Direct (up to 16 via UBM Backplane)

• Bus Interface: PCIe 5.0 x16

• Pro/RAID Adapter: RAID 0, 1, 10 & Single-Disk

• For Linux & Windows

• Supports x86 Inte/AMD & ARM Platforms

• Enterprise & Datacenter Class: U.2, U.3, E3.S & E1.S NVMe SSDs
