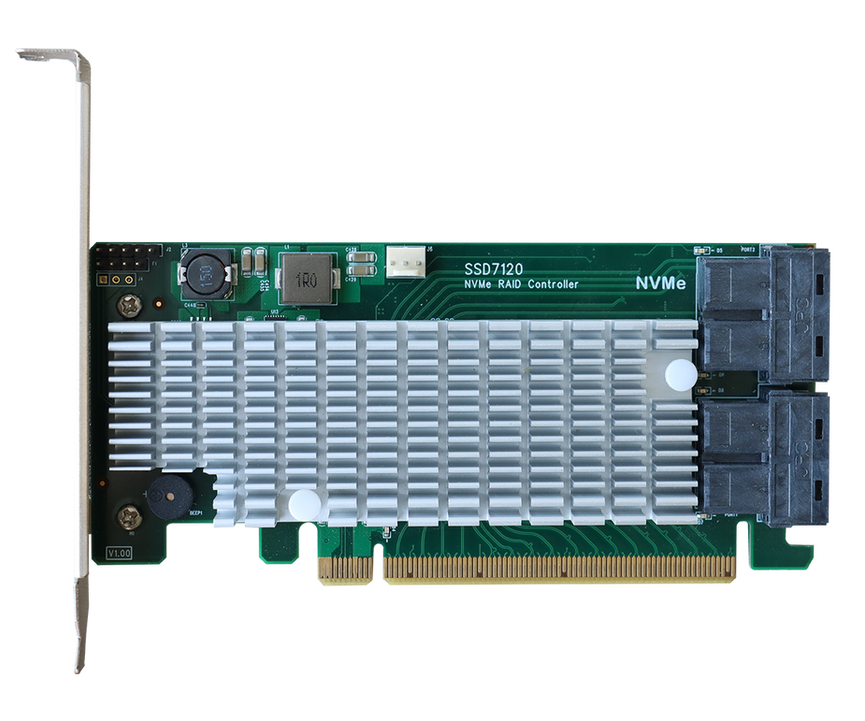

Rocket 1120

PCIe 3.0 x16 4-Port U.2 NVMe HBA

Verstaile4-Channel NVMe Connectivity Solution for PCIe Gen3 Platforms

R1000 Series NVMe HBAs are fully independent, stand-alone NVMe storage solutions for PCIe Gen3 platforms; they are not tied to a specific motherboard, chipset or operating system, can be easily integrated into any motherboard or server/workstation platform with a free PCIe 3.0/4.0 x16 or x8 slot, and are capable of supporting off-the-shelf NVMe SSDs of any capacity.

The Rocket 1120 is a versatile, high-performance NVMe connectivity HBA for PCIe 3.0 host platforms. The four independent device ports can support U.2/U.3 or M.2 NVMe SSDs via a range of cabling solutions.

Performance-Focused NVMe Hardware Architecture

HighPoint NVMe connectivity HBAs benefit from decades of engineering and design expertise, and are capable of saturating x16 lanes of PCIe Gen4 or Gen3 host bandwidth. The highly flexible, performance-focused NVMe hardware architecture leverages intelligent PCIe switch technology to allocate up to x4 lanes to each device port, as needed.

Native, In-Box NVMe Device Driver Support

HighPoint NVMe HBA’s were designed with simplicity in mind. Just install the SSDs and plug in the card!

Rocket 1000 Series HBA’s are natively supported by all major Windows and macOS operating systems, and current distributions of Linux. You won’t need to juggle a series of device drivers, install a complex software suite, or master a specialized management interface. Your NVMe SSDs will be automatically recognized, and can be prepped and mounted using the operating system’s standard tool set.

Rocket1120 Performance Focused Hardware Achitecture

Versatile Cabling Solutions

The Rocket 1120 works with a variety of industry standard connectors – not just SFF-8639, which is employed directly by U.2 media. We offer a selection of cabling accessories capable of supporting a wide range of storage configurations, including SFF-8643 connections and SFF-8611 Oculink backplanes. This allows the Rocket 1180 to support any industry standard U.2 or M.2 NVMe SSD.

Learn More: Download the Datasheet

Project Inquiry/Evaluation Program

Spe

Specifications

Product feature
Bus Interface	PCI-Express 3.0 x16
Number of Channel / Port	4x U.2 NVMe port (Dedicated PCIe 3.0 x4 per port)
Data Transfer Rate	8 GT/s
Number of device	4x U.2/U.3 NVMe SSD
SSD Form Factor	2.5" U.2
Form Factor	Low-Profile
Card Dimensions	5.71" (W) x 2.72" (H) x 0.68" (D)
Card Weight	0.60 lbs.
Warranty	1 Year
Supported Operating Systems
Windows	Microsoft Windows; VMware vSphere/ESXi; Red Hat Enterprise Linux; SuSE Linux; Ubuntu Linux; Citrix XenServer; CentOS Linux; Debian Linux; Oracle Enterprise Linux; Fedora; FreeBSD; macOS; (All operating systems with native NVMe driver can be supported.)
System Requirements
Mac Platforms:	• Apple Mac Pro Systems: 2012 and later • Intel & Apple M1 & Apple M2 Platform compatible • Thunderbolt™ 3 Connectivity via Thunderbolt™ Expansion chassis: RocketStor6661A
PC Platforms:	• Any PC Systems or Motherboard with an industry standard PCIe x8 or x16 physical Slot (Bifurcation is not required) • Thunderbolt™ 3 Connectivity (requires a PC platform with a Thunderbolt 3 port) & Thunderbolt™ Expansion chassis: RocketStor6661A
Cooling System	Full-length aluminum heat sink
Operating Environment
Work Temp	+5°C ~ + 55°C
Storage Temp	-20°C ~ +80°C
Operating Voltage	PCI-e: 12V, 3.3V
Power	Typical: 7.43W
MTBF (Mean Time Before Failure)	920,585 Hours
Certification / Approval	CE, FCC, RoHS, REACH, WEEE
Kit Contents	1x R1120
	1x Quick Installation Guide
	1x Low-Profile bracket
