The RocketU 1244C is the industry's fastest USB Host Controller. Each of the four USB Type-C ports is fully independent, and powered by a dedicated 10Gb/s USB 3.2 controller chip, backed by a robust PCIe 3.0 x8 host interface. This unique host controller architecture ensures each hosted USB device can operate at peak performance without saturating the bus or taxing system resources.
4x Dedicated USB-Type C 3.2 10Gb/s Ports
Dedicated PCIe 3.0 x8 Host Interface
Ideal for professional-grade, High-Speed Data Acquisition & Transfer Applications
4 USB-Type C ports support any industry-standard USB device or peripheral
Driverless Installation: Native xHCI Support
Dedicated Per-Port Performance Architecture
4x 10Gb/s Transfer Bandwidth
Unlike most USB controllers in today’s marketplace, the RocketU 1244C supports four independent USB Type-C ports, each of which is powered by a dedicated USB 3.2 10Gb/s controller. This unique Per-Port Performance architecture enables each RocketU 1244C to deliver up to 4000MB/s of transfer bandwidth.
Blazing Fast PCIe 3.0 x8 Host Interface
The blazing fast PCIe 3.0 x8 host interface works in tandem with our Per-Port Performance architecture to ensure each individual USB port can deliver 10Gb/s of transfer bandwidth at all times, even in cases where each port is occupied and under heavy load.
Dedicated USB Controllers Provide Independent Device Paths & Power Delivery
The RocketU 1244C’s four dedicated USB 3.2 controllers enable each port to work independently and deliver up to 7.5W of power for device operation or charging purposes. The innovative PCB layout provides a dedicated USB connection pathway for each port; hosted USB devices can operate at peak performance, without the risk of interference by neighboring USB connections.
Ideal for High-Speed Data Acquisition & Capture Applications
The RocketU 1244C's performance-focused HBA architecture was designed for workflows that demand ease of integration, hot-plug capability, and rapid file transfer. The four independent 10Gb/s USB ports and PCIe 3.0 x8 host interface can easily accommodate a wide range of high-speed data acquisition applications, including imaging and capture solutions, security systems, and media archiving.
USB Cameras & Imaging/Capture Devices
Media Processing & Archiving

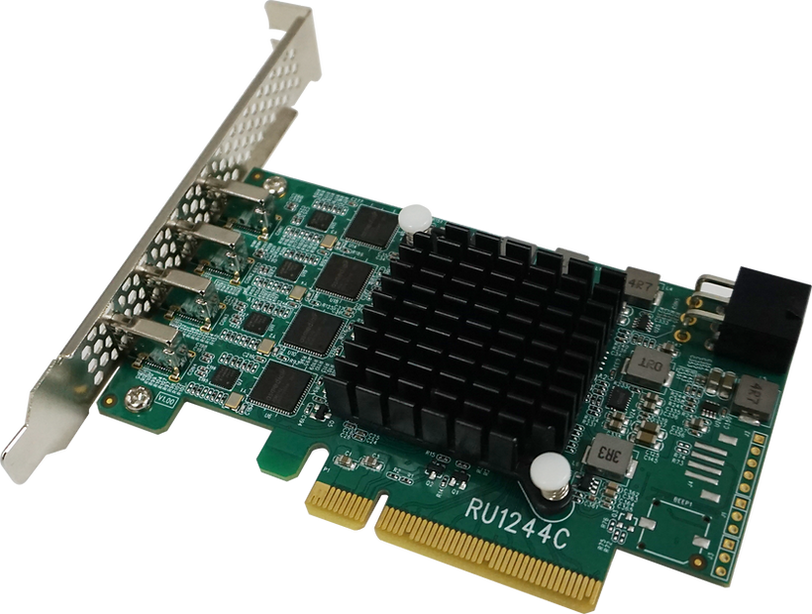

HighPoint RocketU 1244C 4x 10Gb/s PCIe 3.0 x8 USB Host Controller
Universal Device Compatibility
Works with any industry-standard USB 2.0/3.2 Gen1/3.2 Gen2 device
Dedicated USB 10G Connectivity
The RocketU 1244C features four dedicated 10Gb/s USB ports
USB Device Charging
RocketU 1244C can be used to charge USB compliant devices
xHCI CompliantDriverless Installation: The RocketU 1244C is natively supported modern operating systems
Ultra-High Performance:
Dedicated PCIe 3.0 x8 Bus-Bandwidth
Learn More
Feature Specifications | |
Host Bus Interface | 8-lane, 8 GT/s PCI Express 3.0 Compliant |
Interface Technology | Supports up to USB 3.2 10Gb/s link speed
Backwards compatible with USB 3.2 Gen2, USB3.2 Gen1 & USB 2.0 |
Supported Standard | UASP, xHCI |
Apple M1 Platform Suport | Yes |
Operating System Support (Mac compatibility) | • Compatible with PCIe slots
• Mac Pro 5,1 or 7,1
• macOS 10.12.6 and later
• Supports Intel & M1 chipset |
Operating System Support (Windows compatibility) | • Compatible with PCIe slots
• Windows 11,10,8.1
• Windows Server 2022, 2016, 2012, 2008 (64-bit editions)
|
Operating System Support (Linux compatibility) | • Compatible with PCIe slots
• Linux kernel 3.10.0 and later |
Operating System Support (VMware ESXi compatibility) | Yes |
Secure Boot(PC platforms) | Windows: Support Secure Boot Disable and Enable
Linux: Support Secure Boot Disable and Enable |
Number of Channel / Port | 4 |
Port Type | USB Vertical Type-C |
Data Transfer Rates | 10Gb/s per port |
Number of Devices | 4 x USB 1.x, 2.0, and 3.x compatible devices |
USB port Ampage | 1.5A output per port |
Bus Powered Peripherals | Up to 7.5W per port for device operation or charging |
External Power Support | Yes (6pin PCIe Power Connector) |
USB Port Sharing | Dedicated (Not Shared): Each USB Port has a dedicated controller (ASM3142) |
Form Factor | Low-Profile |
Cooling system | Anodized Aluminum heat sink |
Dimensions | 4.57" W x 2.71" H x 0.45" D |
Weight | 0.46lbs |
Warranty | 1 Year |
Compliance Certification | CE, FCC, RoHS, REACH, WEEE |
Operating Environment | |
Work Temp: | 5°C ~ 45°C |
Storage Temp: | 40°C ~ 65°C |
Operating Voltage | PCI-e: 12V, 3.3V |
Power | Typical: 8.38W (card only) |
MTBF (Mean Time Before Failure) | 920,585 Hours |
Kit Contents | |
Model | RocketU 1244C |
Controller card | 1x Controller card |
Quick Installation Guide | 1x Quick Installation Guide |
Low Profile Bracket | 1x Low Profile Bracket |
