RocketStor 6414S

  • Robust, external 4 6Gb/s SAS/SATA Storage Tower Enclosures

  • Each Hot-Swap Drive Tray supports 2.5"/3.5" SAS/SATA HDD/SSD up to 14TB in size

  • Designed for use with RocketRAID series PCIe Hardware and Value RAID 6Gb/s SAS and SATA HBA’s.

  • Mac and PC compatible

Robust, High-Quality 6Gb/s Mini-SAS Tower Enclosures

The RocketStor 6414S is a stylish, high-quality storage tower enclosures that feature external 6Gb/s Mini-SAS ports and removable hot-swap bays which support any 2.5" or 3.5" SATA Hard Drive or SSD of your choice. Customers have the freedom to use their choice of RocketRAID host adapter and storage device; SATA SSD’s for performance or large hard disks for maximum capacity, from all major drive brands including HGST, Seagate, Toshiba and WDC.

The enclosure features built in LED’s and an audible alarm that quickly notify administrators in the case of hardware failure or environmental warning such as power loss or overheating.

Robust, Portable Enclosure Design

Each stylish, high-quality brushed aluminum chassis features smart and quiet cooling fans, an efficient internal power supply, and a compact form-factor that is ideal for portable applications. The external 6Gb/s Mini-SAS port and four removable hot-swap bays support any 2.5" or 3.5" Enterprise / NAS class SATA / SAS Hard Drive or SSD.

Ideal Storage Unit for RocketRAID Series External 6Gb/s SAS & SATA HBA’s

One or more RocketStor 6414S can be paired with HighPoint external RocketRAID series 6Gb/s SAS or SATA HBA, and tailored to provide reliable, high-performance RAID storage for a wide range of professional applications.​

Industry’s Most Affordable Hardware RAID Solutions: RocketStor 6414S tower enclosures can be paired with RocketRAID 4522 (SAS/SATA) hardware RAID HBA’s.​

High-Performance RAID Solutions: RocketStor 6414S tower enclosures can be paired with external-port RocketRAID 2700 Series HBA's in order to create reliable, high-performance RAID 0 and 5 configurations.​

Affordable, Reliable RAID 5 Storage Solution: The RocketStor 6414S can be paired with the RocketRAID 644LS and SATA hard drives for entry-level server applications that demand RAID 5 redundancy.

​8-Bay RAID Storage Solutions

EXT-MS-1MMS (SFF-8088 to SFF-8088)

1 Meter Ex. Mini-SAS to Ex. Mini-SAS cable

RocketRAID Controllers

4-Bay RAID Storage Solutions

RocketStor 6414S

4-Bay SAS/SATA Tower Enclosure

EXT-MS-1MMS (SFF-8088 to SFF-8088)

1 Meter Ex. Mini-SAS to Ex. Mini-SAS cable

RocketRAID Controllers

Comprehensive RAID & Storage Controller Support

RocketStor 6414S Tower Enclosures are the perfect storage companions for RocketRAID series external 6Gb/s SAS and SATA RAID HBA’s.

RocketRAID 4500 Series 6gb/s SAS/SATA H/W RAID HBA’s:

RocketRAID 2700 Series 6Gb/s SAS/SATA RAID HBA’s:

Learn More

Product Specifications

Product information
RocketStor 6414S
Description
4-bay SAS/SATA Hot-Swappable Tower Enclosure
Port Type
SFF-8088 (Q-SATA)
Number of Drives
4
Drive interface
6Gb/s SAS/SATA
Drive size
3.5"   or 2.5" SSD or HDD
Enclosure Dimensions
5.28"(W)x8.74"(H)x8.43"(D)
Enclosure Weight
10.3 lbs.
Warranty
1 Year
Power supply
250W Internal Power Supply AC Input: 100–240V, 50-60Hz
Drive hotplug support
Yes
Internal Fan
80x80x25mm, Single Fan

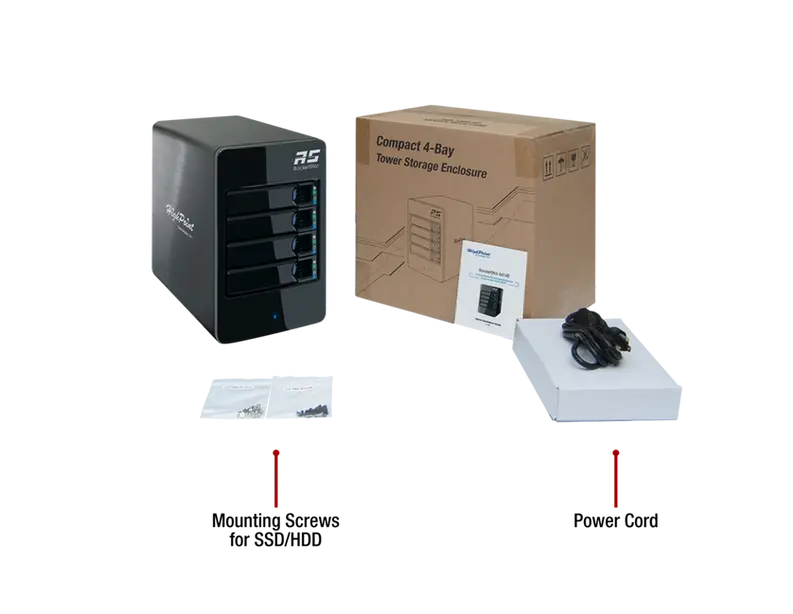

Kit Contents
1x 4-Bay Tower Enclosure
4x Drive Trays
1x UL Power Cord
16x 3.5” HDD mounting screws
16x 2.5” SSD mounting screws
1x Quick Installation Guide
Optional Accessories
RocketRAID 3742A
RocketRAID 644LS
8644-8088-1M1: 1 meter SFF-8644 to SFF-8088 cable. Enablesd the 6661A-mSAS2 to support RocketStor 6430 series Enclosures.
ThunderboltTM Expansion chassis: RocketStor6661A: ThunderboltTM 3 connectivity (requires a pc platform with a thunderbolt 3 port)
