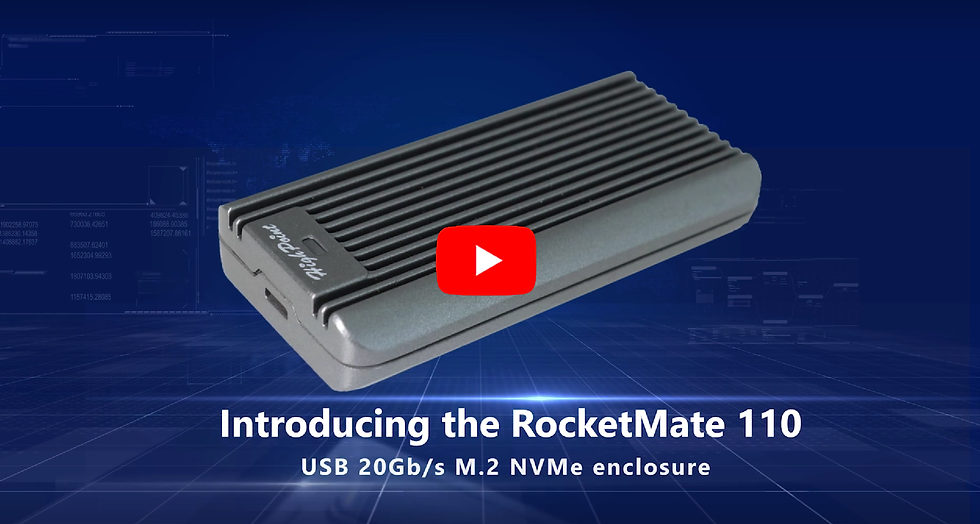

The RocketMate 110's unique PCIe Gen3 to USB 3.2 Gen2x2 20Gb/s architecture can deliver over 2000MB/s via a 3.2/3.1/3.0 or Thunderbolt 3 host connection.
Dedicated Solution
Your system does not support USB 3.2 20Gb/s?
We got you covered!
Add 20Gb/s NVMe Storage + USB 3.2 connectivity to any PCIe 3.0 x4 capable platform with the RocketU 1411C.
Simply plug in the RocketU 1411C to access the 20Gb/s speeds!
20Gb/s Not Enough?
Connect Up to 8 RocketMate 110's
Model
Port Count
x1 20Gb/s
x4 20Gb/s
x8 20Gb/s
Extreme Durability Design to Prevent Performance Throttling
Supports M-Key M.2 NVMe SSD
No Drive Capacity Limitation
M.2 2242
M.2 2260
M.2 2280
Feature Specifications | |
Interface Technology | Supports up to USB 3.2 20Gb/s link speed |
Supported Standard | USB 3.2 Gen2*2 |
Operating System Support (Mac compatibility) | • Mac Pro 5,1 or 7,1
• macOS 10.12.6 and later
• Support Intel and M1 chipset |
Operating System Support (Windows compatibility) | • Windows 11,10,8.1 • Windows Server 2022,2016,2012,2008 (64-bit editions) |
Operating System Support (Linux compatibility) | • Linux kernel 3.10.0 and later |
Operating System Support (VMware ESXi compatibility) | Yes |
Secure Boot(PC platforms) | Windows: Support Secure Boot Disable and Enable Linux: Support Secure Boot Disable and Enable |
LED Indicator | I/O & Sleep Mode status |
Enclosure Design | Robust, portable, all-aluminum enclosure protects & cools M.2 SSDs. IP68 Compliant. |
Cooling system | Full aluminum construction directs heat away from NVMe media |
Port Type | USB Type-C |
Number of device | 1x M.2 NVMe SSD |
SSD Form Factor | 2242/2260/2280 |
Data Transfer Rates: | Up to 20Gb/s |
Dimensions | 4.09'' (W) x2.03'' (D) x0.71'' (H) |
Weight | 0.35 lbs. |
Warranty | 1 Year |
Compliance Certification | CE, FCC, RoHS, REACH, WEEE |
Storage Features | |
Bootable Drive support | Yes (Linux, Mac) |
Drive hotplug support | Yes |
Operating Environment | |
Work Temp: | +5°C ~ + 55°C |
Storage Temp: | -20°C ~ +80°C |
Operating Voltage | USB:5V |
Power | Typical:12W |
MTBF (Mean Time Before Failure) | 920,585 Hours |
Kit Contents | |
Model | Rocketmate 110 |
Cable | 1x 0.5M USB-C 20Gb/s cable |
Controller card | 1x RocketMate 110 enclosure |
Quick Installation Guide | 1x Quick Installation Guide |
Learn More
Product Specifications
Gallery
*DISCLAIMER* RocketMate 110 20Gb/s varies on system's specifications. See your manufacturer if your system support 20Gb/s connections
*DISCLAIMER* 2019 Mac Pro's and current Apple M1 systems will limit performance to 10G or less. This is a limitation of the hardware platforms, and not the RocketMate 110.
*DISCLAIMER* Due to the limits of Thunderbolt 4, the RocketMate 110 will be limited to PCIe 3.0 x1 speeds (1000MB/s max )
