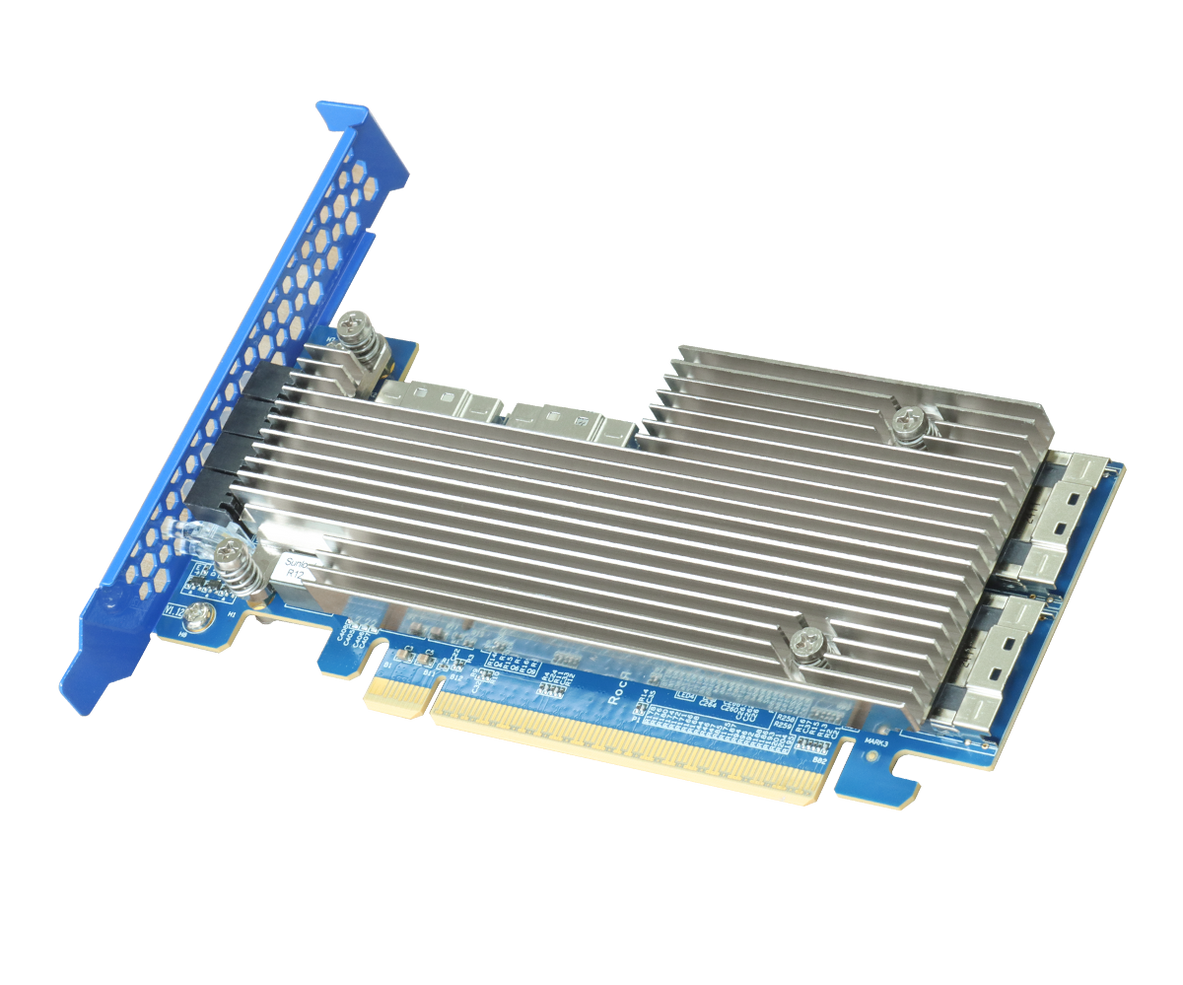

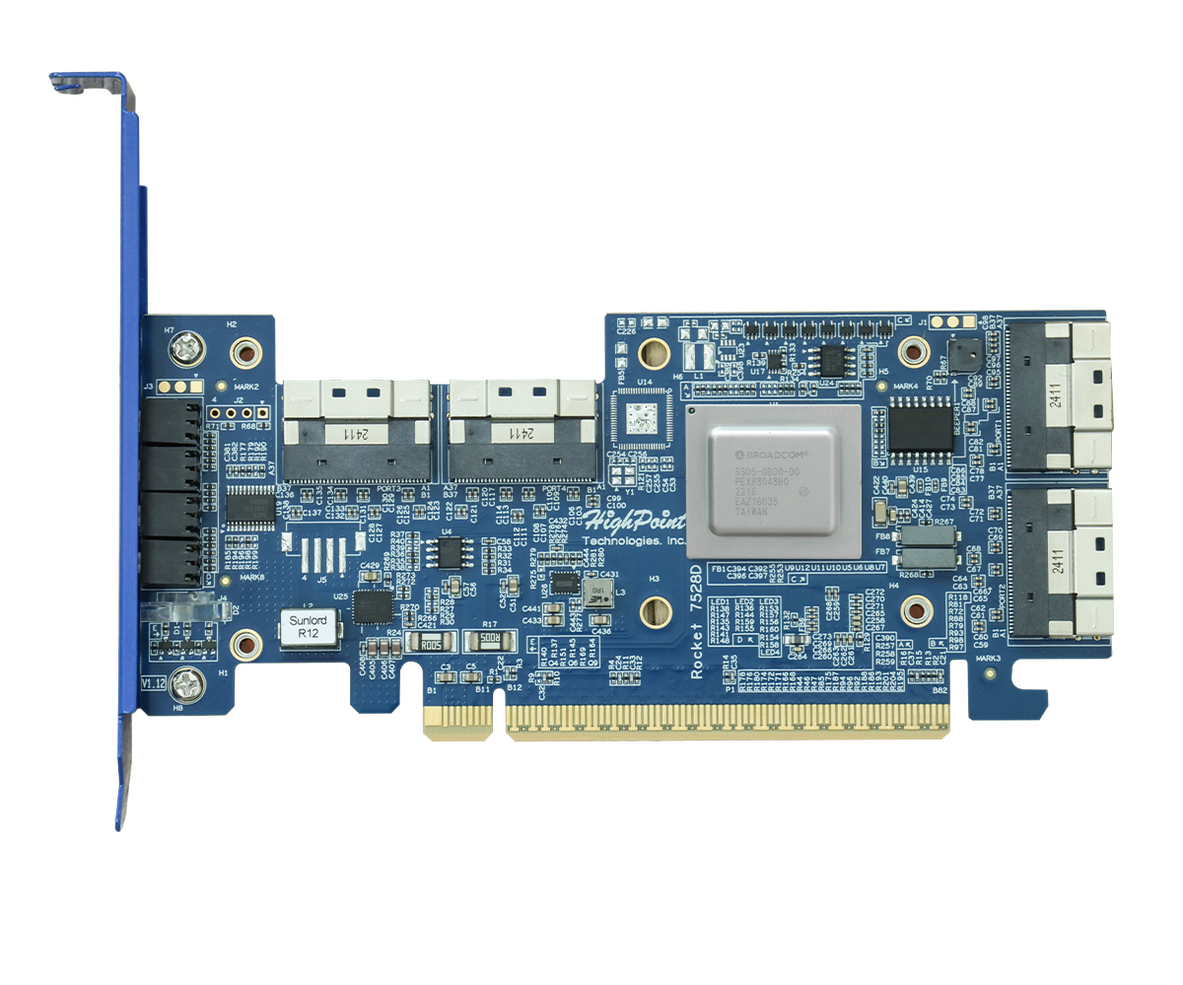

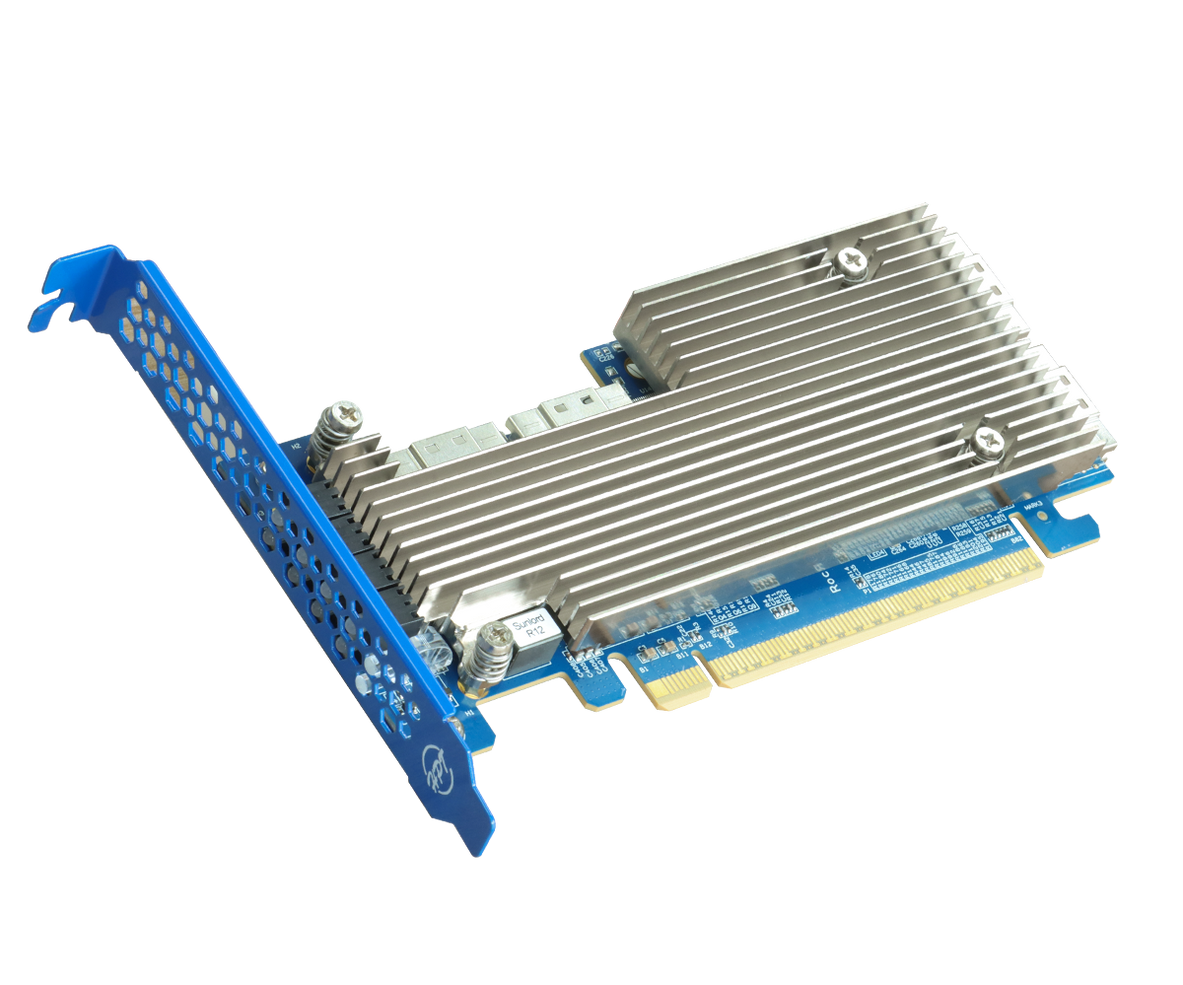

PCIe Gen4 x16 to 4x SlimSAS NVMe RAID Adapter
Key Features:
4x SlimSAS (SFF-8654) Ports (dedicated x8 lanes per port)
No. of Devices: Up to 8 Direct, Up to 32 via backplane
Bus Interface: PCIe 4.0 x16
RAID Adapter: RAID 0, 1, 10 & Single-Disk
For Linux & Windows
Supports x86 Intel/AMD & ARM Platforms
Enterprise & Datacenter Class: U.2, U.3 & E1.S NVMe SSDs
Gen4 and 2nd Gen4 RAID Adapters
Model | SSD7580B/C | Rocket 7528D / Rocket 7528U |
Switching Architecture | Gen4 | 2nd Gen4 |
PCIe Host | 4.0 x16 | 4.0 x16 |
Connectors | 4x SFF-8654 | 4x SFF-8654 |
Drive FF | U.2/U.3 | U.2/U.3, E3.S |
Drive Features | Hot-Swap | Hot-Swap, Opal SED, 2 x2 |
Bandwidth (MB/s) | 28,000 | 28,000 |
IOPS (Million) | 6.0 M | 6.0 M |
Board FF / Size | LP | LP MD2 |
165.1mm x 68.8mm | 155mm x 68.9mm | |
Cooling Solution | H/S w/ Single Fan, Threshold Alerts | FL Passive H/S W/ Copper Piping, Threshold Alerts |
RAID Mode / Level | Single, RAID 0, 1, 10 | Single, RAID 0, 1, 10 |
Management Suite Interface | UEFI-HII, WebGUI, CLI, API | UEFI-HII, WebGUI, CLI, API |
Solutions Suites | 1-Click, Storage Health Inspector, Advanced RAID Features | SafeStorage, 1-Click, Storage Health Inspector, Advanced RAID Features, Integrated Self Diagnostic LED, Environnemental Sensor & Logging Solution |
DS Lane Options | 8 x4 | x16, x8, x4, x2, x1 |
FW Customization | n/a | SMBus, I2C, MCTP over PCIe and other communication protocol |
Backplane | Direct Cabling | UBM, VPP |
Rocket 7528D / Rocket 7528U Specifications
Product Model | Rocket 7528D (R7528D) / Rocket 7528U (R7528U) |
Hardware Features | |
Bus Interface | PCIe 4.0 x16 |
Number of Channel / Port | 8x Device Channels / 4x SlimSAS Ports (Dedicated PCIe 4.0 x8 per port) |
Connector Type | SlimSAS (SFF8654 8x） |
Connector Pinout Definition | SFF-9402 Compliant |
Number of devices | 8 |
Data Port Reconfiguration (Downstream Configuration: 1x16 /2x8 /4x4 /8x2 /16x1 ) | Yes |
SSD Form Factor | U.2, U.3 |
SRIS and REFCLK Support | TBA; please contact Sales for more information |
Downstream port containment | Yes |
Read tracking | Yes |
Ultra-Dense, High-Performance PCIe Gen4 NVMe RAID Solution for Enterprise Edge Datacenter & Server Environments
HighPoint’s Rocket 7528D / Rocket 7528U PCIe Gen4 x16 NVMe RAID Adapter is a direct replacement for the SSD7580B and SSD7580C. Like it’s predecessors, the Rocket 7528D / Rocket 7528U’s four SlimSAS SFF-8654 -ports can directly host up to 8 U.2 or U.3 NVMe SSDs in RAID 0 1 and 10 configurations via a range of cabling solutions. However, the product utilizes our second-generation PCIe Gen4 Switching architecture and sports a range of new features, such as an industry standard LP-MD2 form factor, customizable firmware, UBM and VPP backplane support, FRU compliance (field replacement unit), OPAL SED support, and a suite of integrated hardware sensors designed to actively monitor and record the operational status of the hosted NVMe media and Switch Chipset.
The second-generation Rocket 7528D / Rocket 7528U PCIe Gen4 RAID AIC leverages Broadcom’s cutting-edge 48-lane PCIe Switch ICs to maximize the performance and capacity potential 2.5" NVMe media for PCIe 4.0 x16 host connectivity. The compact LP-MD2 adapter directly hosts up to 8 U.2/U.3/E1.S SSDs or as many as 32 devices via backplane connectivity, and is capable of delivering a class-leading 28GB/s of real-world transfer performance using just one PCIe Gen4/Gen5 x16 slot. HighPoint’s proven RAID technology enables each adapter to support up to four independent RAID arrays, which can be tailored to maximize performance, storage capacity, and Data Security.
With x16 lanes of dedicated upstream bandwidth, flexible RAID technology, unmatched device connectivity, the Rocket 7528D / Rocket 7528U sets a new benchmark for single-slot PCIe Gen4 storage expansion, and is ideal for a wide array of high-speed applications and data-intensive Industrial and Edge Datacenter and Server computing environments.
Key Features:
4x SlimSAS (SFF-8654) Ports (dedicated x8 lanes per port)
Supports Enterprise and Datacenter Class U.2, U.3, & E1.S NVMe media
Leverages Broadcom’s 48-lane PEX88048 PCIe Switch IC:
• Ensures the fastest, densest downstream connectivity possible
• Optimizes signal integrity & stability, and minimizes latency
Designed to maximize performance & connectivity density per PCIe 4.0 x16 Slot: Achieves up to 28GB/s with support for 32 devices
HighPoint’s Pro-Series Storage Suite
• RAID Solution: 0, 1, 10 & Single-Disk
• Intelligent Pro-Active Cooling Solution
• Storage Active Sensor Logging & Analysis Suite
• SafeStorage SED Solution
• Incorporates customizable Firmware Solutions
Robust, flexible & scalable; Tailor speed & capacity for the deployment & infrastructure requirements of each Application/Workflow
Hot-Swap/Hot-Plug Support
Proven, Comprehensive cabling solutions designed for direct-to-device and industry standard backplane connectivity
Cross-Sync RAID Technology: Cross-Sync enables administrators to create arrays using up to 16 SSDs and as many as four Adapters installed into a single system.
Supports Bootable RAID Volumes
Powered by Industry Proven PCIe Switching Technology
HighPoint NVMe RAID Adapters are engineered to maximize the potential of each available PCIe x16 slot to deliver peak performance and superior storage connectivity. Each solution leverages Broadcom’s industry-leading x48-Lane PCIe Switch ICs to optimize signal integrity, minimize latency and provide the fastest, densest downstream port connectivity possible in a single-slot device. Learn More...
Engineered for Scalable Storage Infrastructures
HighPoint's Rocket 7528D / Rocket 7528U is engineered to address the dynamic needs of edge server and workstation platforms. Industry proven RAID technology and flexible, configurable firmware packages enable the adapter to support a broad range of storage and device configurations designed for integration into next-generation hardware environments.
Key Features & Advantages:
Configurable PCIe Lane Counts enable customers to optimize data flow and/or transfer performance to facilitate seamless integration of NVMe media into various storage architectures and workloads.
Compliant with Industry Backplane Specifications: The adapters support UBM (Universal Backplane Management), VPP (Virtual Pin Port) and real-time storage health and connectivity monitoring to ensure full compliance with industry standard backplane specifications for superior reliability.
Comprehensive Storage Communication Interfaces: With support for SMBus, I2C, and advanced Out-of-Band protocols like MCTP and SMC, HighPoint NVMe Switch Adapters provide extensive communication options to enhance storage administration across a diverse range of hardware environments.
All-In-One RAID and Storage Management Solutions
Empower NVMe Storage with HighPoint's Industry-Proven RAID Technology
HighPoint’s industry-proven NVMe RAID technology provides unparalleled flexibility, enabling administrators to easily craft, maintain and scale RAID storage to address the unique requirements of each target application and workflow.
Host up to four RAID arrays including bootable volumes
Mix individual SSD configurations with RAID arrays
Optimize for Performance, Redundancy or a mix of both.
RAID Modes Tailored for Every Application
RAID 0 (Striping) - Also known as a “stripe” array, this mode delivers Maximum Performance and capacity by linking multiple NVMe SSD's together to act as a single storage unit.
RAID 1 (Mirroring) - This mode creates a hidden duplicate of the target SSD, and is ideal for applications that require an extra layer of data security, such as a bootable volume.
RAID 10 (Security & Speed) - RAID 10 offers a “best of both worlds” by leveraging striping with mirroring technology; two RAID 1 arrays are striped together to maximize performance. RAID 10 is capable of delivering read performance on par with RAID 0.
Advanced RAID Features
Unlock Advanced RAID Capabilities with HighPoint Storage Technology.
Bootable RAID Support: Maximize performance and capacity with RAID 0 striping or mitigate the threat of downtime with RAID 1 mirroring
Online RAID Roaming: Move RAID configurations between Highpoint AICs or Adapters without reconfiguration
Cross-Sync RAID Technology: Combine up to 16 SSDs across as many as four AICS into a single unified RAID volume for unapparelled performance and capacity.
Comprehensive Management Tools
HighPoint NVMe RAID Adapters include robust management and monitoring utilities for administrators of all skill levels:
The WebGUI is an intuitive Web-based graphical user interface.
RA7528D, Rocket 7528D, TAA Compliant, TAA Compliance
CLI (Command Line Interface): streamlined tool for expert administrators.
UEFI Tool: Configure arrays using a USB flash drive without need for an OS.
Intelligent 1-Click Self-Diagnostic & Logging Solution: Simplify troubleshooting with automated logs and direct support access.
HighPoint NVMe RAID Technology: Your Solution for Performance and Reliability
Take control of your NVMe storage with HighPoint’s innovative RAID technology. From advanced features to comprehensive management tools, our RAID technology delivers the flexibility, scalability, and reliability you need to tackle modern workloads.
Gen5 & 2nd-Gen Gen4 Field Service Feature Suite
Intelligent Self-Diagnostic LEDs & Alarms: HighPoint PCIe Gen5 Adapters feature Built-In Early Warning LED Indicators and Audible Alarms. Simple color coding and light/sound patterns enable administrators to instantly asses the status of hosted M.2 media, the strength of the PCIe connection, and temperature of the PCIe switch hardware.
Environmental Monitoring, Logging & Analysis Solution:
HighPoint's PCIe Gen5 x16 NVMe RAID Adapters employ an innovative Performance and Troubleshooting solution that combines an active NVMe sensor suite with real-time Environmental Logging and Analysis capability.
The solution has been integrated into the WebGUI Management Tool, and will automatically track and log the temperature and power consumption of each hosted SSD.
FRU (Field Replicable Unit) Support: Rocket 7528D / Rocket 7528U Adapters are field replaceable units; (FRU); the VPD stored on each adapter enables customers and service providers to easily procure replacements with the correct firmware/driver combination.
Integrated NVMe Hot-Plug & Hot-Swap Capability: Enables administrators to add or remove SSDs while the host platform remains online.
Redesigned Cooling Solution
The Rocket 7528D / Rocket 7528U's redesigned PCIe Gen4 NVMe Hardware Cooling Solution is comprised of full-Length Aluminum heat exchanger, which features an innovative copper piping system designed to rapidly whisk waste heat away from the PEX 88048 switch IC and controller componentry to promote longevity of the adapter hardware.

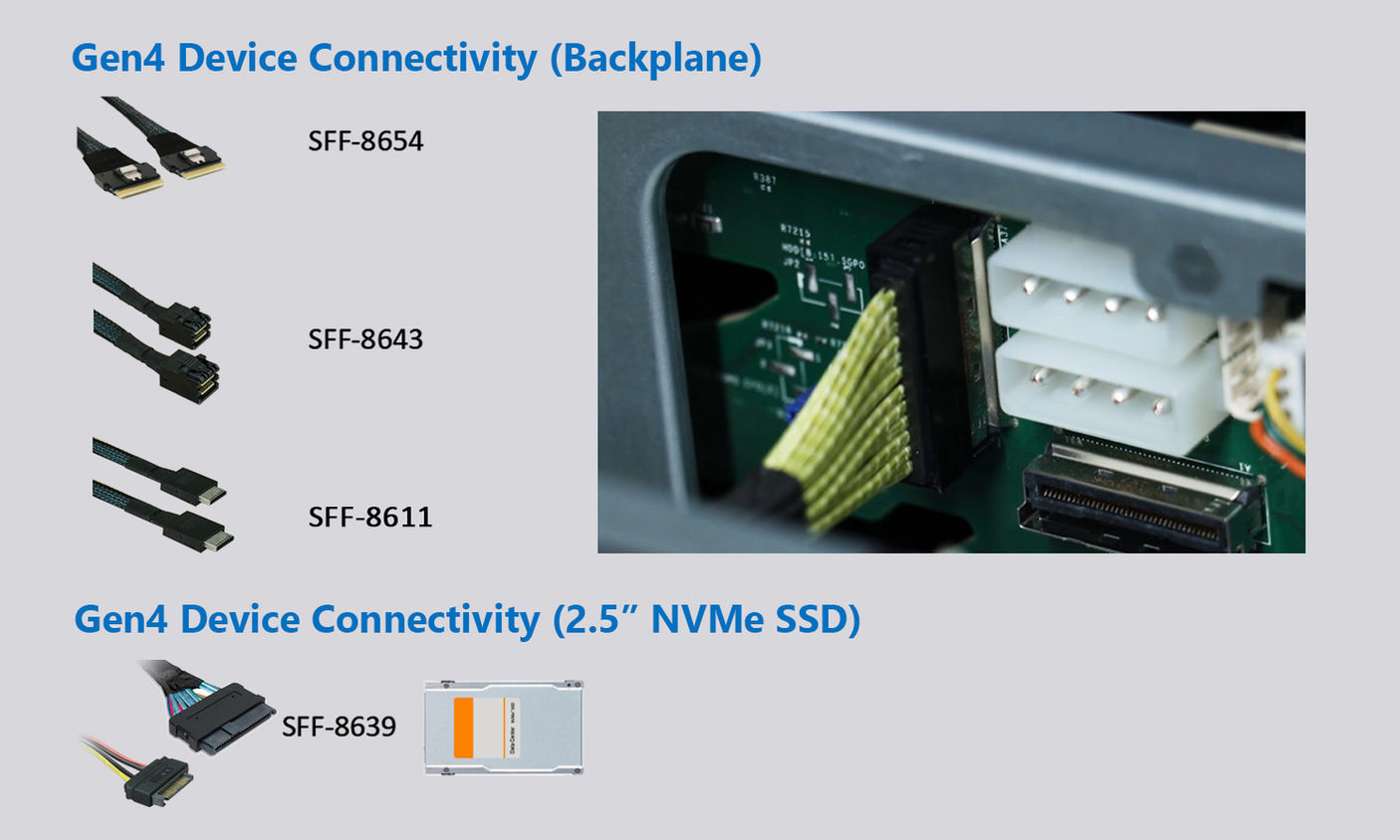

Versatile Cabling Solutions
The Rocket 7528D / Rocket 7528U is capable of interfacing with a variety of industry standard storage chassis, including internal 2.5” drive bays, Mobile Racks, and storage backplanes via a selection of certified cabling solutions.
These include direct to SSD connections such SFF-8639 (U.2/U.3).
Options for backplane/mobile rack connectivity include SFF-8654, and SFF-8643 (Gen3).
On the software side, Rocket 7528D / Rocket 7528U Adapters leverage our proven SHI (Storage Health Inspector) solution.
SHI utilizes SMART technology to log & report the physical characteristics of each SSD, such as temperature, voltage and endurance (Total Bytes Written / Disk Writes per Day).
HighPoint SafeStorage SED Solution
Rocket 7528D / Rocket 7528U Adapters are protected by SafeStorage - a state-of-the-art data encryption solution for OPAL SSC compliant SED drives and arrays.
Stored data is automatically locked down whenever storage is unplugged from the AIC, effectively preventing unauthorized access to sensitive information should physical disks be misplaced or stolen.
Applications & Use Cases
The Rocket 7528D / Rocket 7528U is engineered to maximize the performance, scalability and serviceability of NVMe storage media for Edge computing environments designed to accommodate data-intensive workloads such as Enterprise Storage Expansion, Medical/Scientific imaging and database servers, AI/ML driven Industrial Applications, Big-Data Analytics, and Cloud Computing services.
The Rocket 7528D / Rocket 7528U's four SlimSAS Ports are capable of supporting up to 32 enterprise/datacenter class NVMe drives and nearly 2 Petabytes of storage capacity. State-of-the art PCIe Switch Architecture, powered by Broadcom PEX and PLX series Switch ICs, enable each Adapter to allocate up to x4 lanes of dedicated bandwidth to each SSD and deliver 28GB/s of real-word transfer throughput form a single PCIe slot. Industry-leading NVMe RAID technology with advanced management and monitoring features administrators to seamlessly configure scale and service NVMe storage to satisfy the performance, capacity or endurance requirements of mission critical enterprise applications and workloads.
Cloud Computing Services
Use Cases: Cloud Service Applications
Benefits: Speeds up to 6 million IOPS, support for up to 32 enterprise-class NVMe drives, flexible RAID technology, and a wide selection of certified cabling solutions are ideal for Cloud Computing Services including Online Storage and Virtual Machine hosting.
Edge Computing
Use Cases: Edge Server & Datacenter Environments
Benefits: Blazing performance, instant access time and flexible RAID configurations are ideal edge server and datacenter applications.
Medical & Scientific
Use Cases: EMS (electron microscopy), MRI/CT scan storage, electronic health records (EHR), & medical research databases
Benefits: Massive bandwidth & capacity support HD imaging systems, rapid access to large files & patient data to enhance diagnostic & research
Database Management Systems (DBMS)
Use Cases: Large-scale databases, online transaction processing (OLTP), & data warehousing
Benefits: Enhances I/O performance and reduces latency, leading to faster query processing.
Big-Data Analytics
Use Cases: Applications that process immense volumes of data such as real-time analytics and business intelligence applications
Benefits: Rapid access to massive datasets, results in faster analytics and insights generation.
PCIe Gen5 Solutions
Product | PCle | Ports | # of Devices | Hot-Swap | SSD FF |
|---|---|---|---|---|---|
Rocket 7624A | PCIe 5.0 x16 | 2x MCIO 8x | Up to 4 | Yes | Direct Connect U.2/U.3; Backplane Connection: ESDFF devices such as U.2/U.3/E1.S |
Rocket 7628A / Rocket 7628U | PCIe 5.0 x16 | 4x MCIO 8x | Up to 32 | Yes | Direct Connect U.2/U.3/E3.S;
Backplane Connection: ESDFF devices such as U.2/U.3/E1.S/E3.S |
PCIe Gen4 (2nd-Gen) Solutions
Product | PCle | Ports | # of Devices | Hot-Swap | SSD FF |
|---|---|---|---|---|---|
Rocket 7528D / Rocket 7528U | PCIe 4.0 x16 | 4x SlimSAS (SFF-8654 8x） | Up to 32 | Yes | Direct Connect U.2/U.3;
Backplane Connection: ESDFF devices such as U.2/U.3/E1.S |
PCIe Gen4 Solutions
PCIe Gen3 Solutions
Product | PCle Lanes | Ports | # of Devices | Hot-Swap | SSD FF |
|---|---|---|---|---|---|
SSD7180 | PCIe 3.0 x16 | 8x MiniSAS | Up to 8 | N/A | Direct Connect U.2/U.3;
Backplane Connection: U.2/U.3 |
SSD7120 | PCIe 3.0 x16 | 4x MiniSAS | Up to 4 | N/A | Direct Connect U.2/U.3;
Backplane Connection: U.2/U.3 |
SSD7184 | PCIe 3.0 x16 | 4x Int. & 4x Ext. MiniSAS | Up to 8 | N/A | Direct Connect U.2/U.3; Backplane Connection: U.2/U.3 |
NOTE: Please email to GeneralSales@highpoint-tech.com for more information about upgrading to latest software and documents.
HighPoint NVMe Switch Adapters and Systems from our Partners
Testimonials
To meet the rapidly growing data demands of automotive validation and AI-driven test environments, InoNet has integrated HighPoint’s Rocket 7528D PCIe Gen4 x16 NVMe RAID Adapter into the InoBay-2U Storage Extender platform. This solution eliminates frequent storage swaps during long-duration test drives, ensures secure and uninterrupted data logging, and streamlines ingest workflows.
“The 7528D’s ability to connect eight Solidigm D5-P5336 122 TB QLC SSDs enabled us to build an encrypted RAID 0 array with nearly 1 petabyte of storage capacity and blazing write speeds up to 26 GB/s. “ Jürgen Obergfell, Supervisor Design Engineering, InoNet Computer GmbH
The Rocket 7528D’s high-bandwidth PCIe Switch architecture and advanced RAID engine were instrumental in delivering a compact, reliable, and scalable storage backbone—perfectly aligned with InoNet’s mission to provide sustainable, high-performance solutions for intelligent vehicle testing and edge data capture.
Learn More about InoNet's : https://www.inonet.com/produkt/inobay-2u/?lang=en
