Rocket 1104

PCIe 3.0 x16 4-Port M.2 NVMe HBA


High-Speed 4-Channel M.2NVMe Connectivity Solution for PCIe Gen3 Platforms

Rocket1104 Front Side


R1000 Series NVMe HBAs are fully independent, stand-alone NVMe storage solutions for PCIe Gen3 platforms; they are not tied to a specific motherboard, chipset or operating system, can be easily integrated into any motherboard or server/workstation platform with a free PCIe 3.0/4.0 x16 or x8 slot, and are capable of supporting off-the-shelf M.2 NVMe SSDs of any capacity.

The Rocket 1104 is a cost-effective, high-performance 4-channel M.2 NVMe connectivity solution for PCIe Gen3 platforms with a free PCIe x16 slot. The four independent device ports can support off-the-shelf 2242/2460/2280/22110 M.2 SSDs of any capacity.


Built-in High-speed, Intelligent Switch Chipset

The Rocket 1104 NVMe HBA'sperformance-focused hardware architecture leverages  intelligent PCIe switch technology to ensure maximum transfer bandwidth is available for each device port, at all times. A dedicated x4 lanes of host bandwidth are allocated to each M.2 NVMe SSD.




Native, In-Box NVMe Device Driver Support

HighPoint NVMe HBAs were designed with simplicity in mind. All you need is a little patience and a screwdriver; just install the M.2 SSD’s and plug in the card!

Rocket 1000 Series HBAs are natively supported by all major Windows and macOS operating system platforms, and current distributions of Linux.

You won’t need to juggle a series of device drivers, install a complex software suite, or master a specialized management interface. Your NVMe SSDs will be automatically recognized, and can be prepped and mounted using the operating system’s standard tool set.

Rocket1104 Performance Focused Hardware Achitecture
Advanced Cooling Solution_Rocket 1104


Fan-less Cooling for Media Sensitive Working Environments

Rocket 1104 HBAs feature a ventilated bracket and full-length black-anodized heat sink with high- conductivity thermal pad efficiently whisks waste heat away from hosted SSDs and critical controller componentry.

This robust, fan-less design allows for completely silent operation – ideal for applications that require low-noise work environments.

Spe

Specifications

Product feature

Bus Interface

PCI-Express 3.0 x16

Number of Channel / Port

4x M.2 NVMe port (Dedicated PCIe 3.0 x4 per port)

Data Transfer Rate

8 GT/s

Number of device

4x M.2 NVMe SSD

SSD Form Factor

2242/2260/2280/22110 (supports single & double sided)

Form Factor

Full-Height

Card Dimensions

7.68" (W) x 4.38"(H) x 0.73"(D)

Card Weight

1.34 lbs.

Warranty

1 Year

Supported Operating Systems

OS

Microsoft Windows; VMware vSphere/ESXi; Red Hat Enterprise Linux; SuSE Linux; Ubuntu Linux; Citrix XenServer; CentOS Linux; Debian Linux; Oracle Enterprise Linux; Fedora; FreeBSD; macOS; (All operating systems with native NVMe driver can be supported.)

System Requirements

Mac Platforms:

• Apple Mac Pro Systems: 2012 and later • Intel & Apple M1 & Apple M2 Platform compatible • Thunderbolt™ 3 Connectivity via Thunderbolt™ Expansion chassis: RocketStor6661A

PC Platforms:

• Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required) • Thunderbolt™ 3 Connectivity (requires a PC platform with a Thunderbolt 3 port) & Thunderbolt™ Expansion chassis: RocketStor6661A

Cooling System

Fan-less, Full-length anodized aluminum Heat sink

Operating Environment

Work Temp

+5°C ~ + 55°C

Storage Temp

-20°C ~ +80°C

Operating Voltage

PCI-e: 12V, 3.3V

Power

Typical: 7.29W

MTBF (Mean Time Before Failure)

920,585 Hours

Certification / Approval

CE, FCC, RoHS, REACH, WEEE

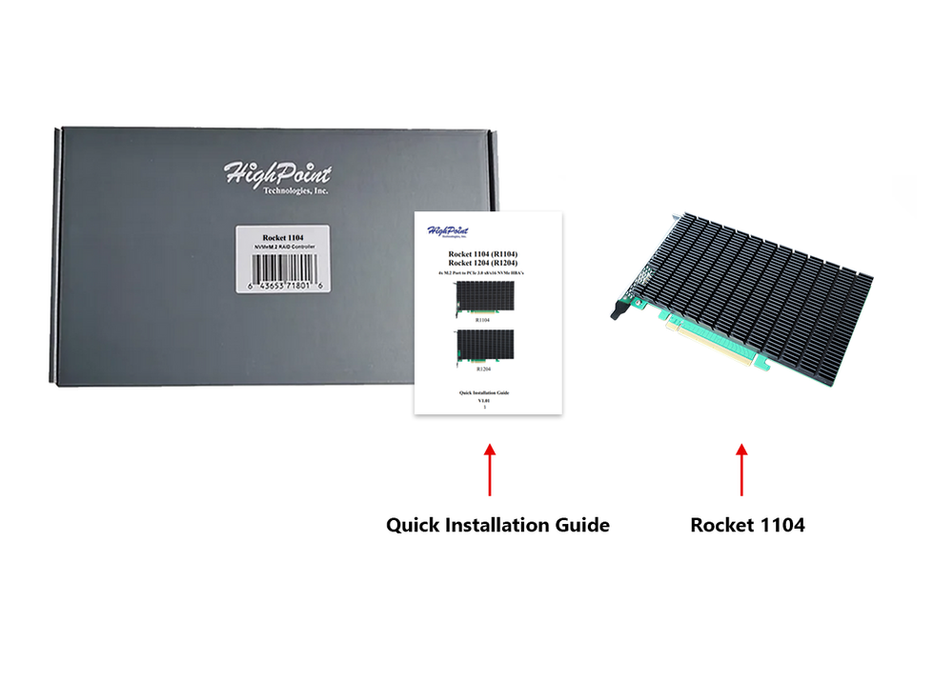

Kit Contents

1x R1104
1x Quick Installation Guide
